Açıklama

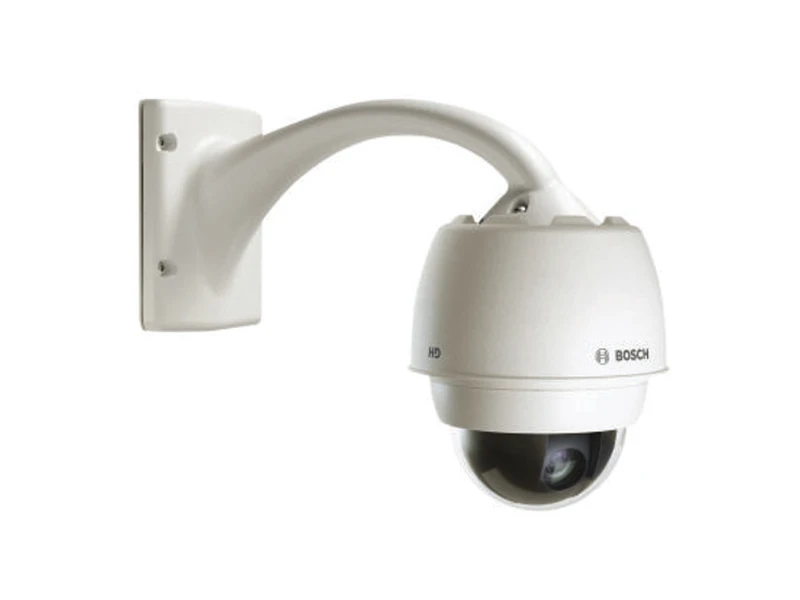

Bosch AUTODOME IP starlight 7000 HD 1080P IP HD Speed Dome Kamera

Özellikler

Excellent low-light performance
High Dynamic Range (120 dB) for challenging bright and dark scenes
Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
Enhanced camera reliability with optional dual, redundant power ensures continuous 24x7 operation
Dedicated AES 256-bit crypto engine for secure recorded video

Teknik Özellikler

Normal Mode	0.1°/s-120°/s , 0.1°/s-120°/s
Preset Accuracy	± 0.1° typ. , ± 0.1° typ.
In-Ceiling	Pendant
Input Voltage	21-30 VAC, 50/60 Hz; (class II) High PoE (with Bosch Midspan (NPD-6001A); required to power the heater) PoE+ (IEEE 802.3at, class 4 standard)(when used indoors, not powering the heater)
Power Consumption,typical	24 W / 44 VA , 60 W / 69 VA (heaters on)or24 W / 44 VA(heaters off / without heater connected in power supply box for indoor applications)
Protection on Alarm Inputs	Peak current 17 A, peak power 300 W (8/20 μs)
Protection on Alarm Outputs	Peak current 2 A, peak power 300 W (8/20 μs)
Protection on Relay Output	Peak current 7.3 A, peak power 600 W (10/1000 μs)
Protection on Power Input (Dome)	Peak current 7.3 A, peak power 600 W (10/1000 μs)
Protection on PowerOutput (Arm Power Supply)	Peak current 21.4 A, peak power 1500 W (10/1000 μs)
10/100 EthernetData Lines	Peak current 14 A, peak power 200 W (8/20 μs)
Camera Setup/Control	Via web browser (such as Internet Explorer version 7.0 or later), Bosch Configuration Manager, Bosch Video Management System (BVMS), Bosch Recording Station (BRS), or Bosch Video Client (BVC)
Electronic Shutter Speed (AES)	1/1 sec to 1/10000 sec (22 steps)
Signal-to-Noise Ratio (SNR)	>55 dB
Backlight compensation (BLC)	On, Off
White balance	2000 K to 10,000 K ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp
Day/Night	Monochrome, Color, Auto
High Dynamic Range (HDR) Mode	120 dB WDR
In-Ceiling	Pendant
Pan Range	360° cont. , 360° cont.
Tilt Angle	1° above horizon , 18° above horizon
Pre-position Speed	Pan: 400°/sTilt: 300°/s , Pan: 400°/sTilt: 300°/s
Turbo Mode(Manual Control)	Pan: 0.1°/s – 400°/sTilt: 0.1°/s – 300°/s
Normal Mode	0.1°/s-120°/s , 0.1°/s-120°/s
Preset Accuracy	± 0.1° typ. , ± 0.1° typ.
In-Ceiling	Pendant
Input Voltage	21-30 VAC, 50/60 Hz; (class II) High PoE (with Bosch Midspan (NPD-6001A); required to power the heater) PoE+ (IEEE 802.3at, class 4 standard)(when used indoors, not powering the heater)
Power Consumption,typical	24 W / 44 VA , 60 W / 69 VA (heaters on)or24 W / 44 VA(heaters off / without heater connected in power supply box for indoor applications)
Protection on Alarm Inputs	Peak current 17 A, peak power 300 W (8/20 μs)
Protection on Alarm Outputs	Peak current 2 A, peak power 300 W (8/20 μs)
Protection on Relay Output	Peak current 7.3 A, peak power 600 W (10/1000 μs)
Protection on Power Input (Dome)	Peak current 7.3 A, peak power 600 W (10/1000 μs)
Protection on PowerOutput (Arm Power Supply)	Peak current 21.4 A, peak power 1500 W (10/1000 μs)
10/100 EthernetData Lines	Peak current 14 A, peak power 200 W (8/20 μs)
Camera Setup/Control	Via web browser (such as Internet Explorer version 7.0 or later), Bosch Configuration Manager, Bosch Video Management System (BVMS), Bosch Recording Station (BRS), or Bosch Video Client (BVC)
