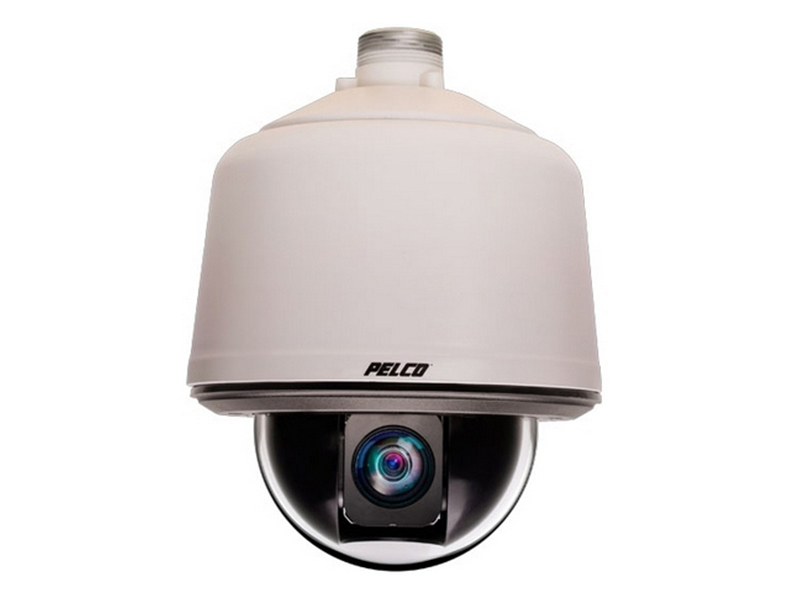

Pelco S6230 EGL0 IP PTZ Speed Dome Kamera
Özellikler
- SureVision 3.0 Technology, Including;
– 130 dB Wide Dynamic Range (WDR)
– Advanced Low Light Down to 0.03 LUX on Select Models
– Anti-Bloom Technology
– 3D Noise Filtering
– Enhanced Tone Mapping
– Anti-Bloom Technology
– 3D Noise Filtering
– Enhanced Tone Mapping
- Up to Full HD 1080p
- Up to 60 Images per Second (ips)
- Power over Ethernet (HPoE and PoE+), 24 VAC, 24 VDC
- Electronic Image Stabilization (EIS)
- Built-in Analytics Suite
- Vandal Resistant IK10 Smoked
- Up to 32 GB Edge Storage with Micro SD Card
- Compatible with Pelco and Third-Party Video Systems
- ONVIF Profile S and Profile G Conformant
- Environmental Pendant Available in Light Gray Finish, RAL9002
- Aluminum Construction, IK10 Rated Nylon Bubble
- Type 4X and IP66
- Uses 1 1/2-inch NPT Thread
- Includes Sun Shield, Heater, and Blower
- –45° to 50°C (–50°F to 122°F) Sustained Operating Temperature
Teknik Özellikler
| SKU | S6230-EGL0 |
| Manufacturer | Pelco |
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vDC, 24vAC, PoE |
| Electronic Shutter | 1/1 ~ 1/10,000 sec |
| Minimum Scene Illumination | Color: (33 ms) 0.20 lux 0.03 lux, Color: (250 ms) 0.025 lux 0.008 lux, Mono: (33 ms) 0.06 lux 0.004 lux, Mon: (250 ms) 0.008 lux 0.001 lux |
| Operating Humidity | 10 to 100% RH (condensing) |
| Operating Temperature | –45° to 50°C (–50°F to 122°F) |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6*, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205 |
| S/N Ratio | >50dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Angle of View | 63.7° wide - 2.3° tele |
| Rotation Angle | 360° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
Pelco S6230 EGL0 IP PTZ Speed Dome Kamera Pdf Dosyası907.26 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
