| Connections (Y) |
| Audio Input Ports : RCA x 1 |
| Audio Output Ports : RCA x 1 |
| Camera Control Interface (PTZ) : RS-485 |
| Network Port : 10/100Base-T |
| Other Ports : USB 2.0 x 2 |
| Video Input Ports : BNC x 4 |
| Video Output Ports : HDMI x 1 , VGA x 1 |
| Dimensions & Weight |
| Depth : 8.2 in |
| Height : 1.9 in |
| Weight : 2.27 lbs |
| Width : 11.8 in |
| DVR HDD |
| Capacity : 1 TB |
| Interface : Serial ATA |
| Quantity Installed : 1 |
| Quantity Supported : 1 |
| Environmental Parameters |
| Humidity Range Operating : 20 - 85% |
| Max Operating Temperature : 104 °F |
| Min Operating Temperature : 32 °F |
| General |
| Audio Channels : 1 |
| Compression Format : H.264 |

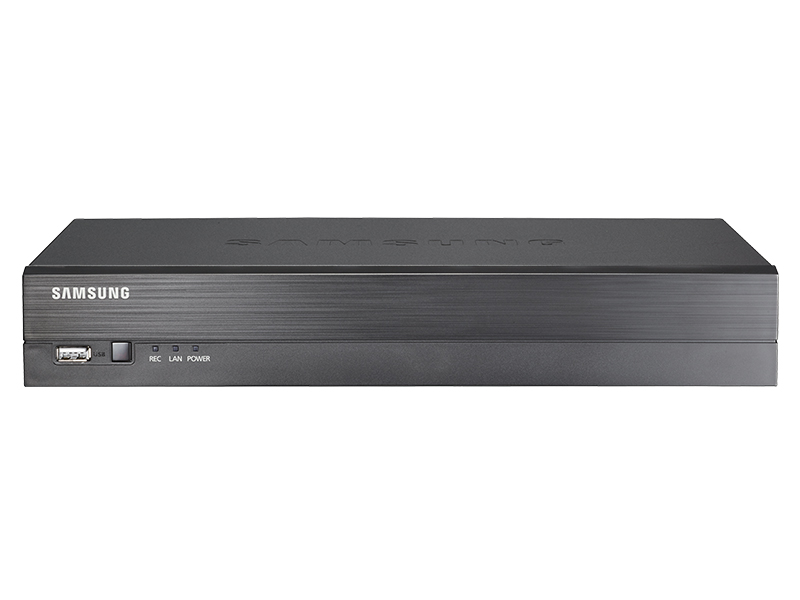

| Device Type : Standalone DVR |
| Image Resolution : 1280x720 , 1920x1080 |
| TV System : NTSC/PAL |
| Video Channels : 4 |
| Header |
| Brand : Samsung |
| Manufacturer : Samsung CCTV |
| Model : SRD-493 |
| Packaged Quantity : 1 |
| Product Line : Samsung WiseNet HD+ |
| Miscellaneous |
| Package Content : DVR |
| Networking |
| DDNS Support : Yes |
| Features : E-mail notification |
| Network Interfaces : Ethernet 10Base-T/100Base-TX |
| Supported Protocols : DDNS , DHCP , HTTP , NTP , PPPoE , RTP , RTSP , SMTP , SNMP , TCP/IP , UPnP |
| OS Provided |
| Type : Linux |
| Power |
| Frequency : 50/60 Hz |
| Power Consumption : 12 Watt |
| Voltage : 100 - 250 V |
| Security DVR |
| Display Modes : 4 split screens |
| Features : Password protection , SmartViewer , Watermark , Webviewer |
| Frame Rate (Record) : 100 fps (PAL) , 120 fps (NTSC) |
| Networked : Yes |
| Playback Search : Date/time , Event , Motion detection |
| Record Events : Motion detection , Tamper detection , Video loss |
| Video Recording Resolution : 1280x720 , 1920x1080 , 928x480 |
