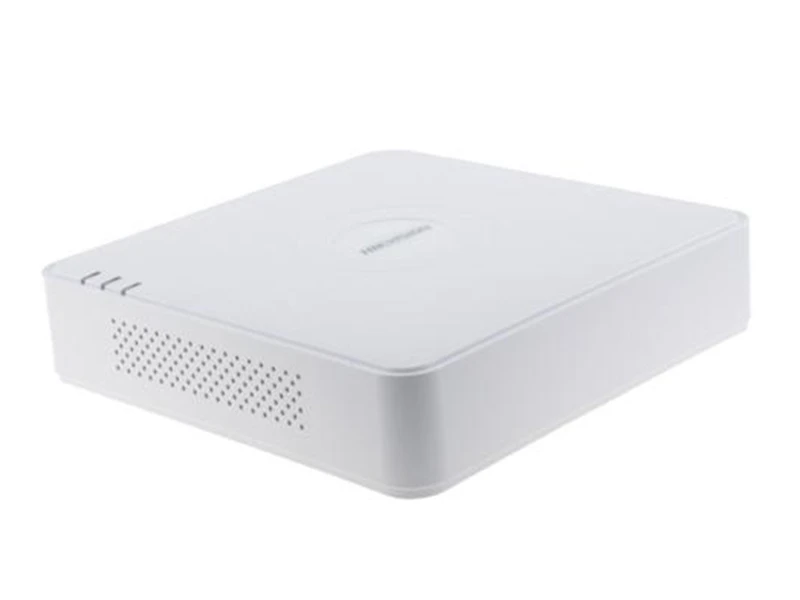

Haikon DS 7116HQHI K1 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Up to 3 MP resolution for recording
- Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
- Up to 2-ch 4 MP IP cameras input
- Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
- 16-ch synchronous playback
Teknik Özellikler
| Video/Audio Input | |
| Audio Input: | 1-ch |
| Video Compression: | H.265+/H.265/H.264+/H.264 |
| Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types: | 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
| Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of | |
| DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1. | |
| Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
| Support CVI input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
| support CVBS input | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | G.711u |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
| When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF | |
| Frame Rate: | Main stream: |
| When 1080p Lite mode not enabled: | |
| For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps | |
| For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| When 1080p Lite mode enabled: | |
| 3 MP@15fps | |
| 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps-6 Mbps |
| Stream Type: | Video/Video&Audio |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Synchronous Playback: | 16-ch |
| Network management | |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk Driver | |
| Interface Type: | 1 SATA Interface |
| Capacity: | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | 2 USB 2.0 Interfaces |
| General | |
| Power Supply: | 12V DC |
| Consumption: | ≤ 15 W(without hard disks) |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | 10% ~ 90% |
| Chassis: | Mini 1U chassis |
Haikon DS 7116HQHI K1 Turbo HD DVR Kayıt Cihazı Pdf Dosyası657.34 KB
