Açıklama

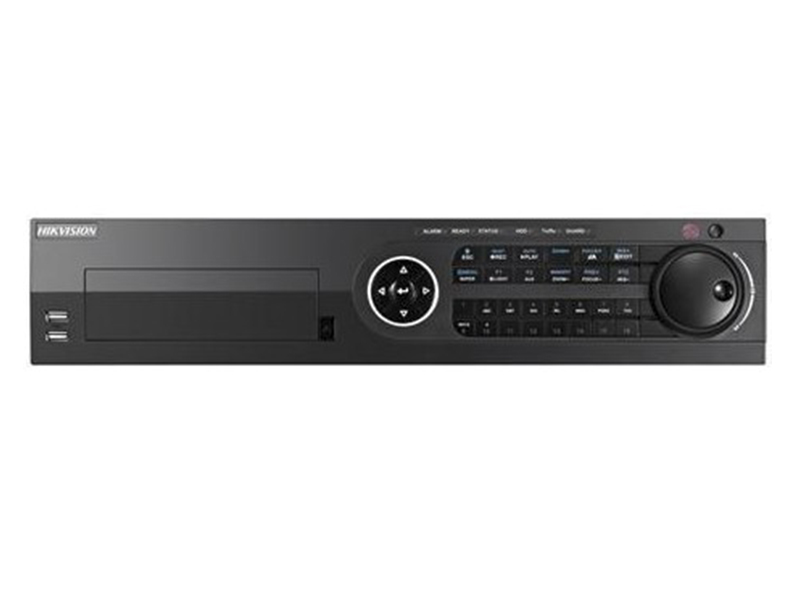

Haikon DS 9016HUHI F16 N Turbo HD DVR Kayıt Cihazı

H.264 ,H.264+& Dual-stream video compression
Support HD-TVI, IPC,AHD and analog cameras with adaptive access
Support Cloud storage(One Drive, Google Drive or Drop Box)
Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
Long transmission distance over coax cable
Up to 16-ch synchronous playback at 3MP resolution
playback at up to 256X speed.
Support POS functions.
Raid 1/0/5/10
Dual network ports

Video/Audio Input
Audio Input:	16-ch
Video Compression:	H.264,H.264+
Analog and HD-TVI video input:	16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:	Support HDTVI input: 3MP, 1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
	Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
	Support CVBS input
Video Input Interface:	BNC (1.0 Vp-p, 75Ω)
Audio Compression:	G.711u
Audio Input Interface:	16-ch RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output

HDMI 1/ VGA and HDMI2:	HDMI1
