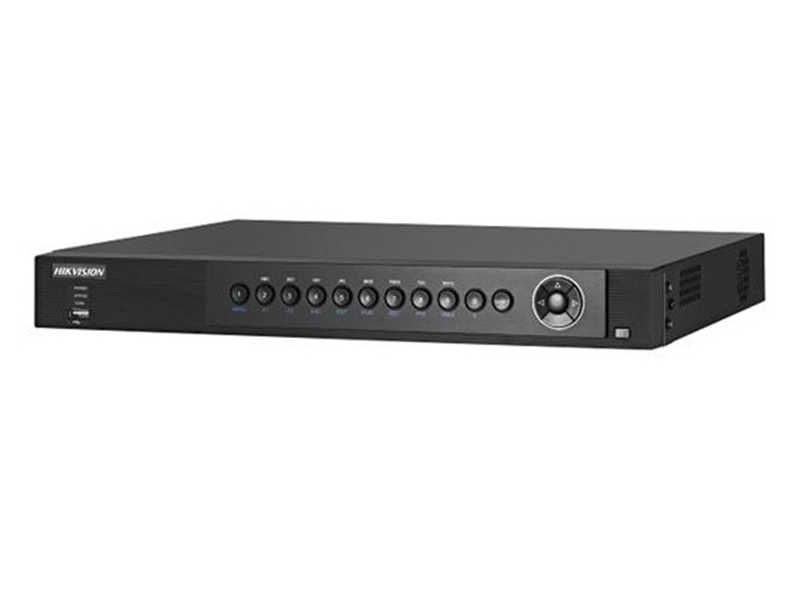

Haikon DS 7216HQHI SH Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Support both HD-TVI and analog cameras with daptive access
- Full channel@1080P resolution real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 16-ch synchronous playback
Teknik Özellikler
| Video compression | H.264 |
| Analog and HD-TVI video input | 16-ch |
| BNC interface (1.0Vp-p, 75 Ω) | |
| Supported camera types | 720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, CVBS |
| IP video input | 2-ch |
| Up to 1080P resolution | |
| Audio compression | G.711u, G.726, G.711a, G.722 |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way audio in | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input) |
| HDMI / VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, |
| 1024 × 768 / 60 Hz | |
| Encoding resolution | Main stream: 1080P / 720P / VGA / WD1 / 4CIF / CIF |
| Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF | |
| / QVGA | |
| Frame rate | Main stream: 1/16 fps ~ Real time frame rate |
| Sub-stream: 1/16 fps ~ Real time frame rate | |
| Video bitrate | 32 Kbps-10 Mbps |
| Audio output | 1-ch, RCA (Linear, 1KΩ) |
| Audio bitrate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 16-ch |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, |
| SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| Network interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| Serial interface | 1; standard RS-485 serial interface, half-duplex |
| Alarm in/out | 16.Nis |
| USB port | 2 × USB2.0 |
| Power supply | 12V DC |
| Consumption | ≤ 45W |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working humidity | 10% ~ 90% |
| Chassis | 380mm 1U chassis |
| Dimensions | 380 × 290 × 48mm |
| (W × D × H) | (15.0 × 11.4 × 1.9 inch) |
| Weight | ≤ 2Kg (4.4lb) |
Haikon DS 7216HQHI SH Turbo HD DVR Kayıt Cihazı PDF Dosyası581.39 KB
