Açıklama

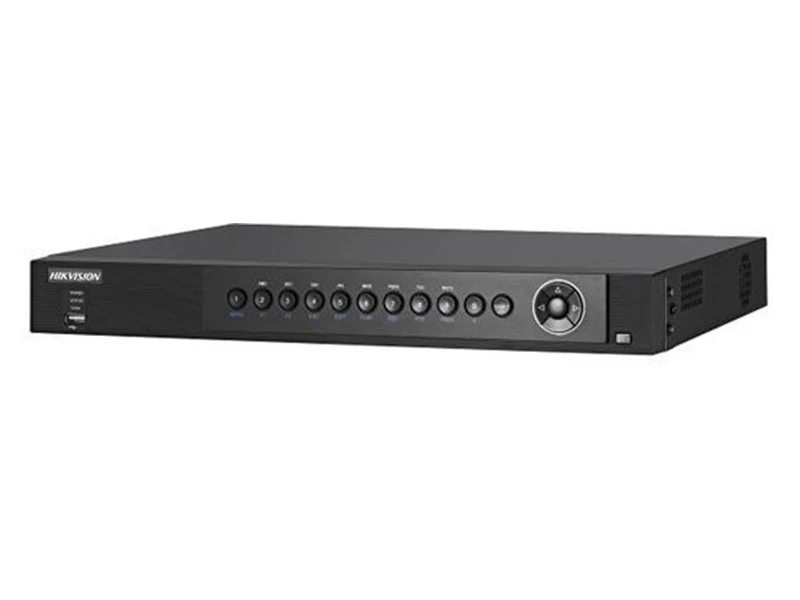

Haikon DS 7216HUHI F2 N Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras with adaptive access
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
- Long transmission distance over coax cable
- Up to 16-ch synchronous playback at 1080p resolution
- playback at up to 256X speed.
Teknik Özellikler
| Video/Audio Input | |
| Audio Input: | 4-ch |
| Video Compression: | H.264,H.264+ |
| Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types: | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
| Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVBS input | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | G.711u |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| Recording resolution: | 3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate: | Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)) | |
| Video Bit Rate: | 32 Kbps-10 Mbps |
| Stream Type: | Video/Video&Audio |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Synchronous Playback: | 16-ch |
| Network management | |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Hard Disk Driver | |
| Interface Type: | 2 SATA Interfaces |
| Capacity: | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex |
| Alarm Input: | 16-ch |
| Alarm Output: | 4-ch |
| General | |
| Power Supply: | 12V DC |
| Consumption: | ≤ 20W(without hard disks) |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | 10% ~ 90% |
| Dimensions: | 380 × 320 × 4 8 mm (1 5.0 × 12.6 × 1.9 inch) |
| Weight: | ≤2 kg(4.4lb) |
Haikon DS 7216HUHI F2 N Turbo HD DVR Kayıt Cihazı Pdf Dosyası660.81 KB
