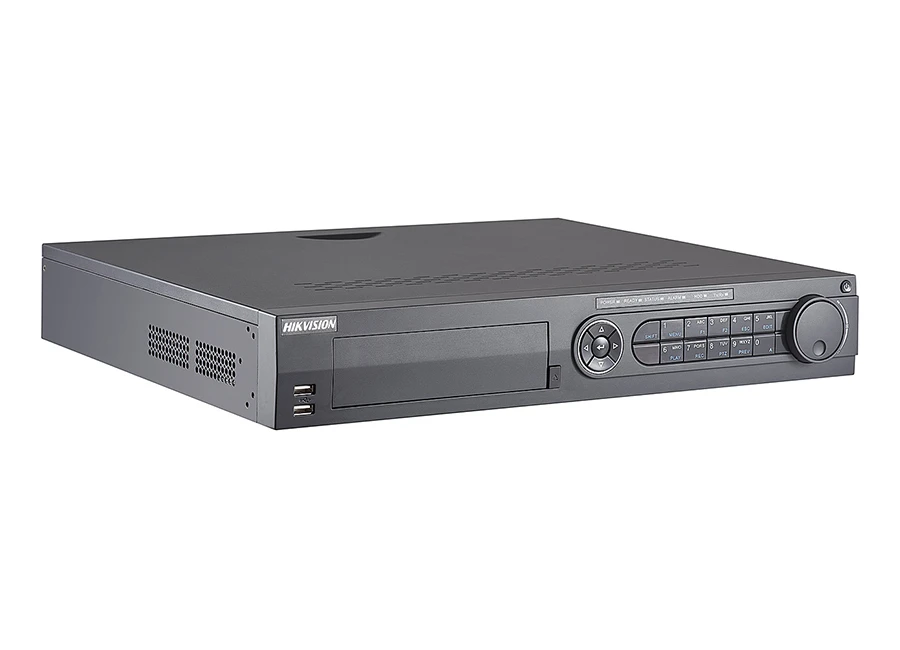

Hikvision DS 8116HUHI K8 Turbo HD DVR Kayıt Cihazı
Özellikler
- Support H.265 Pro+/H.265 Pro/H.265 video compression
- Support HDTVI/AHD/CVI/CVBS/IP video input.
- Max 16/32 IP cameras input (up to 8 MP).
- Max 800 m for 1080p and 1200 m for 720p HDTVI signal.
- Up to 10 TB capacity per HDD.
- Support POS triggered recording and POS information overlay
Teknik Özellikler
| Video/Audio Input | |
| Audio Input | 16-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog and HD-TVI video input | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types | Support HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
| Support AHD input 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
| Support CVI input 4 MP, 720p25, 720p30, 1080p25, 1080p30 | |
| support CVBS input | |
| Audio Compression | G.711u |
| Audio Input Interface | 16-ch RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI2 Output | 1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Frame Rate | Main stream |
| 8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps; | |
| 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Sub-stream | |
| WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Stream Type | Video/Video&Audio |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) |
| Audio Output | 2-ch, RCA (Linear, 1 kΩ) |
| Dual Stream | Support |
| Synchronous Playback | 16-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF,SNMP |
| Hard Disk Driver | |
| Interface Type | 8 SATA Interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| External Interface | |
| Network Interface | 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces |
| USB Interface | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
| Serial Interface | 1 RS-232 serial interface |
| 1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface | |
| Alarm Input | 16-ch |
| Alarm Output | 4-ch |
| General | |
| Power Supply | 100 to 240 VAC |
| Consumption | ≤ 65W(without hard disks) |
| Working Temperature | -10 oC to +55 oC (+14 oF to +131 oF) |
| Working Humidity | 10% to 90% |
| Dimensions | 440 × 470 × 90 mm (17.3 × 18.5 × 3.5 inch) |
| Weight | ≤ 8 kg (17.6 lb) |
Hikvision DS 8116HUHI K8 Turbo HD DVR Kayıt Cihazı Pdf Dosyası705.27 KB
