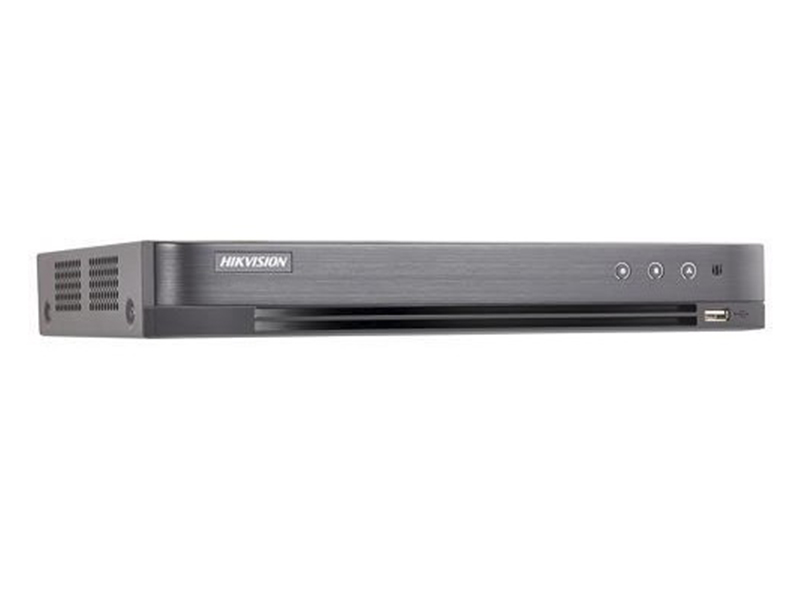

Haikon DS 7208HQHI K2/P HD TVI Kayıt Cihazı
Özellikler
- 8 Kanal H.265+/H.265/H.264+/H.264 PoC Kayıt Cihazı ( 3MP Lite)
- HDTVI (Lite modu aktif): 3MP@15fps, 1080p/720p@25fps, AHD: 1080p/720p@25fps
- HDCVI: 1080p/720p@25fps, CVBS ,
- Haikon PoC kamera desteği, 1x Ses girişi/çıkışı, BNC çıkış
- VGA, HDMI, İkili akış, 2xSATA (~6TB), çift yönlü ses
- 1xRJ45, 2xUSB, RS-485
- IP Kamera Desteği (2 adet, 4MP'e kadar, HAIKON)
- (ilk iki kanal 3MP HDTVI destekler)
Teknik Özellikler
| Video/Audio Input | |
| Audio Input: | 8-ch |
| Video Compression: | H.265+/H.265/H.264+/H.264 |
| Analog and HD-TVI video input: | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types: | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
| Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVBS input | |
| Supports Hikvision PoC camera | |
| Note: Do not unplug or plug the PoC camera if it is powered by the external power supply. | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | G.711u |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
| Video/Audio Output | |
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
| When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF | |
| Frame Rate: | Main stream: |
| When 1080p Lite mode not enabled: | |
| For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps | |
| For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| When 1080p Lite mode enabled: | |
| 3 MP@15fps | |
| 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Sub-stream: | |
| WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps-6 Mbps |
| Stream Type: | Video/Video&Audio |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Synchronous Playback: | 8-ch |
| Network management | |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Hard Disk Driver | |
| Interface Type: | 2 SATA Interfaces |
| Capacity: | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | 2 USB 2.0 Interfaces |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex |
| General | |
| Power Supply: | 48 VDC |
| Consumption: | ≤ 60 W(without hard disks) |
| Working Temperature: | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
| Working Humidity: | 10% to 90% |
| Dimensions: | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
| Weight: | ≤ 1.78 kg (3.9 lb) |
