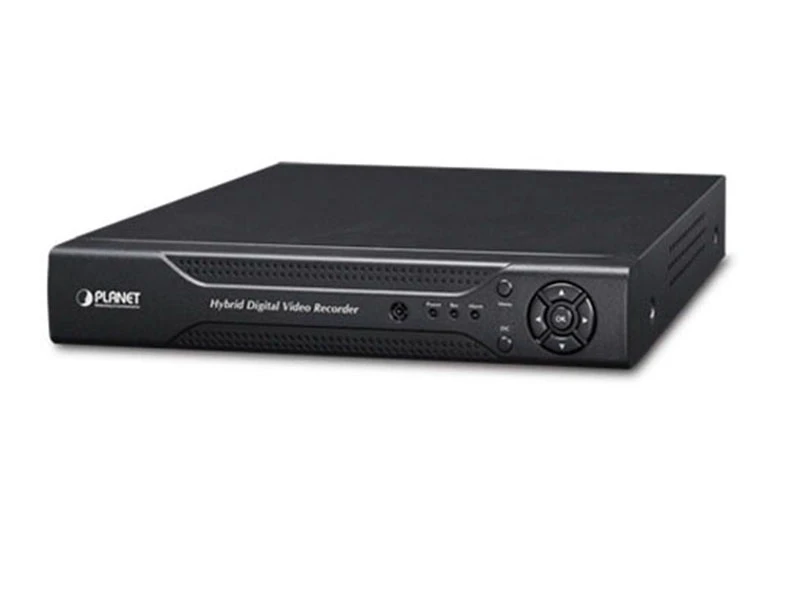

Planet HDVR 430 Hybrid DVR Kayıt Cihazı
Özellikler
Hardware
- Embedded, highly-reliable standalone HDVR
- Supports 4-ch BNC connectors
- Supports VGA/HDMI dual local display
- Supports 3.5" SATA x 1 HDD
- Supports RS485 for PTZ control
Video & Audio
- Supports H.264 compression
- Max. video resolution up to 1080
- Supports hybrid mode for combination of IP, traditional analog and AHD cameras
- 2-way audio support with enhanced audio quality
Video Recording & Backup
- Simultaneous recording and live video streams
- Manual or scheduled recording of 4 cameras simultaneously
- Video recycling function 24/7 for easy inquiry of suspicious events
- Exports recorded video file in AVI format to USB device
- Instant event notification
Network Service
- Easy access with PLANET Dynamic DNS and built-in NTP server
- Supports PPPoE, DHCP and manual settings
Easy Installation & Management
- ONVIF compliant for interoperability
- Supports multiple languages
- Automatically discovered by management software
- Web-based and management utility for easy configuration
- Up to 256 channels with the central management software
- Supports two USB2.0 ports for mouse control and backup
- Supports mobile phone remote viewer, Web UI and CMS
Teknik Özellikler
| Hardware | |
| Ethernet | 1 x RJ45, 10/100BASE-TX |
| BNC Interface | 4 |
| USB Interface | 2 x USB 2.0 for backup device and mouse |
| Video Interface | VGA/HDMI video interface |
| Audio Interface | 2 x audio-in, 1 x audio-out |
| Storage Device | 1 x 3.5” SATA hard disk connector (max. 4TB) |
| LED | Power, Record, Alarm |
| Button | Menu, ESC, Direction & Enter |
| Power Requirement | 12V DC, 2A |
| Consumption | 15W (without HDD) |
| Weight | 1.7kg |
| Dimensions (W x D x H) | 255 x 225 x 45 mm |
| Camera | |
| Max. Channels | 4-channel cameras |
| Additional Camera | Manual/Smart Camera Search |
| Video | |
| Video System | PAL (625line, 50f/s) |
| NTSC (525line, 60f/s) | |
| Compression | H.264 |
| Resolution | IP camera: 1080p/720p |
| Analog camera: | |
| AHD-H (1080p), AHD-M (720p), AHD-L (960H), D1, HD1, CIF | |
| Encode Capacity | 4-ch AHD-M |
| Decode Capacity | 1-ch AHD-M |
| Hybrid Mode | Analog cameras: |
| 4-ch AHD-NH (1080n) | |
| 4-ch AHD-M (720p) | |
| 4-ch AHD-L (960H) | |
| Analog cameras & IP cameras: | |
| 2-ch AHD-M (720p) | |
| 2-ch 720p | |
| IP cameras: | |
| 8-ch 1080p | |
| 8-ch 720p | |
| 4-ch 1080p | |
| 4-ch 720p | |
| 1-ch 1080p | |
| Motion Detection | Zones: 192 (16 x 12) detection zones |
| Sensitivity: multi-level sensitivity (only local channels) | |
| Audio Type | 2-way |
| Audio Format | G.711A |
| Live View | |
| Display Division | 1, 4 |
| Snapshot | Video snapshot in JPEG format |
| Playback | |
| Record | Manual, alarm, motion detection, schedule |
| Local Playback | 1~4-ch simultaneous playback; |
| Supports up to 4-channel playback (local input mode) | |
| Play Method | Play, Pause, Stop, Slow, Fast, Prev. Frame, Next Frame |
| Search by time, calendar, event, channel | |
| Download | Back up file to specific local HDD partition |
| Monitor | |
| Display Quality | 1920 x 1080 |
| 1440 x 900 | |
| 1280 x 1024 | |
| 1280 x 720 | |
| 1024 x 768 | |
| Network and Configuration | |
| Network Service | TCP, UDP, HTTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, FTP, SMTP |
| Security | Password protection, IP address filtering |
| Triggers and Event | |
| Event Type | System Events – |
| No Storage | |
| Storage Error | |
| Storage No Space | |
| Net Disconnection | |
| IP Conflict | |
| Camera Events – | |
| Motion Detection, Video Blind, Video Loss, DI | |
| Event Action | Show Message |
| Buzzer | |
| Mobile Reported | |
| Send e-mail | |
| FTP Upload | |
| Write Log | |
| Management | |
| Remote Session | 5 |
| Privileges | Live View, Playback, System Configurations, Camera Configurations, Recording Configuration, Event Configuration, Maintenance |
| User Interface | Graphic local user interface (Operated by mouse) |
| Web browser (IE) | |
| CMS utility | |
| Log Type | All, System, Config, Storage, Alarm Event, Week Day, Account, Playback |
| Software Utility | Search utility, CMS, App |
| Environment | |
| Storage Temperature | 0~60 degrees C |
| Humidity | 10~90% (non-condensing) |
| Operating Temperature | 0~55 degrees C |
