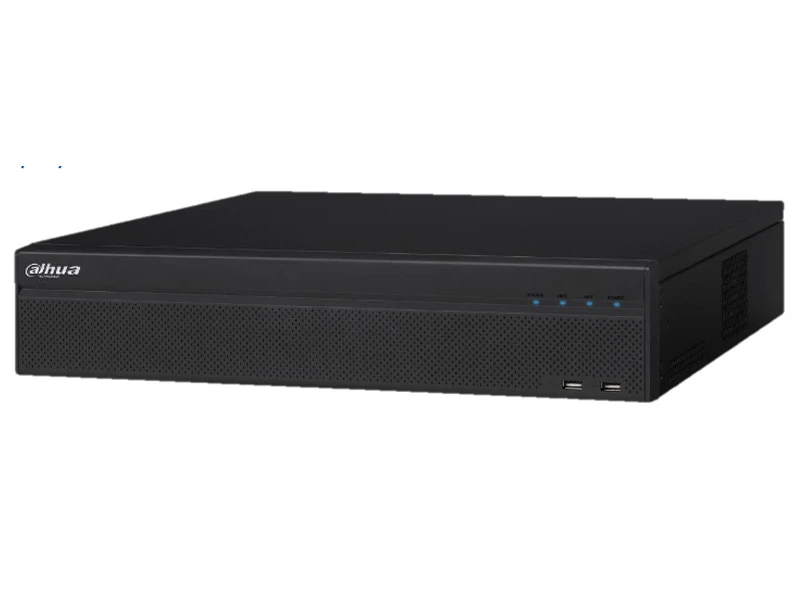

Dahua DH NVR4816 16P 4K NVR Kayıt Cihazı

Özellikler

16 Kanal 16 PoE Full HD 2U Beneficio NVR
16 Kamera 1080p Gerçek Zamanlı Önizleme&Kayıt ve Oynatma,
200Mbps Band Genişliği, 5MP e kadar kayıt,
1xRJ45, 16xAlarm, 1xSes, 4 Röle çıkışı, H.264/MJPEG Dual Codec,
HDMI/VGA/TV Eş Zamanlı Video Çıkışı,
Çoklu Network Görüntüleme,
GRID Arayüz, 32 TB'a kadar 8 Sata HDD,
1xUSB3.0, 2xUSB2.0, IPC UPnP, 16xPoE, AC100-240V

Teknik Özellikler

System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Video
IP Camera Input	16 channel
Two-way Talk	1channel Input, 1channel Output, RCA
Display
Interface	1 HDMI,1 VGA,1 BNC
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264/MJPEG
Resolution	5Mp（2560×1920）/3Mp（2048×1536）/1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)&etc.
Record Rate	200Mbps
Bit Rate	48~ 8192kbps
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	16channel
Relay Output	4channel
Playback & Backup
Sync Playback	1/4/9/16
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/Network/Internal SATA burner/eSATADevice
Network
Ethernet	1 RJ-45 port (10/100/1000Mbps)
PoE	16 ports (IEEE802.3at)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access	128users
Smart Phone	iPhone, iPad, Android, Windows Phone
Storage
Internal HDD	8 SATA ports, up to 32TB
External HDD	1 eSATA port
Auxiliary Interface
USB	3 ports (1 Rear USB3.0, 2 Front USB2.0)
RS232	1 port, For PC communication& Keyboard
RS485	1 port, For PTZ control
General
Power Supply	AC 100V~240V,50/60HZ
Power Consumption	40W(without HDD)
Working Environment	-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension	2U, 440mm×460mm×89mm
(W×D×H)
Weight	6.5KG(without HDD)
