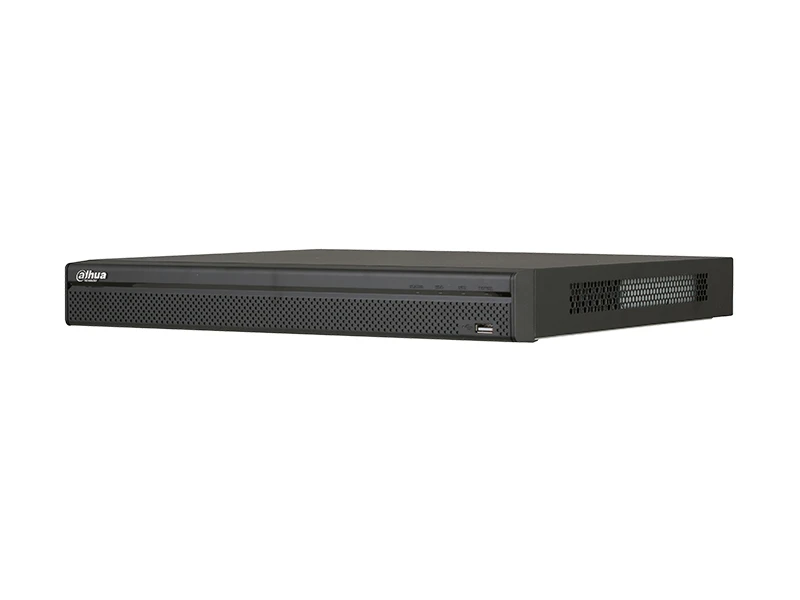

Dahua NVR5216 8P 4KS2E NVR Kayıt Cihazı
Özellikler
Teknik Özellikler
| System | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 8/16 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, |
| 1280 × 720 , 1024 × 768 | |
| VGA: 1920 × 1080 , 1280 × 1024, | |
| 1280 × 720 , 1024 × 768 | |
| Decoding Capability | 4-ch@8MP(30fps), 16-ch@1080P(30fps) |
| Multi-screen Display | 8CH: 1/4/8/9 |
| 16CH: 1/4/8/9/16 | |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264 |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm input | 4 Channel |
| Relay Output | 2 Channel |
| Playback and Backup | |
| Sync Playback | 8CH: 1/4/9 |
| 16CH: 1/4/9/16 | |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Third-party Support | |
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic,
Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
| Network | |
| Interface | 1 RJ-45 Port (10/100/1000Mbps) |
| PoE | 8 ports (IEEE802.3af/at) |
| All ports support ePoE & EoC | |
| Network Function | |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 2 SATA III Ports, Up to 10 TB capacity for each HDD |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 ) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ control |
| Electrical | |
| Power Supply | Single, AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | NVR: <15.2w without="" hdd="" --15="" 2w--=""> |
| PoE: Max 25.5W for single port | |
| 130W total rated power, 80% control for protection | |
| Fan | Smart fan, automatically adjust running speed |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions | 1U, 375mm x 326.5mm x 53mm ; |
| (14.8" x 12.9" x 2.1") | |
| Net Weight | 2.7kg (6.0 lb) (without HDD) |
| Gross Weight | 4kg (8.8 lb) (without HDD) |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL 60950-1 |
Dahua NVR5216 8P 4KS2E NVR Kayıt Cihazı Pdf Dosyası439.94 KB
