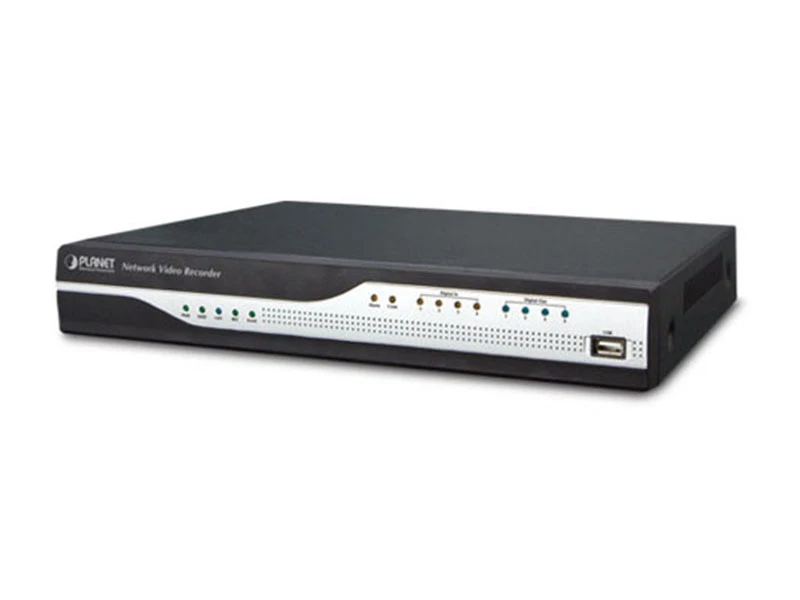

Planet NVR 1615 Kayıt Cihazı

Özellikler

Hardware

Linux-embedded, highly reliable standalone NVR
Supports Gigabit Ethernet port
Supports VGA/HDMI dual local display
Supports two 3.5" SATA III x 2 HDDs
Supports e-SATA

Video and Audio

Simultaneous recording and live view streams
16-channel input of IP cameras
Supports H.264 compression
Video resolution up to 5 megapixels (2560 x 1920)
Supports throughput up to 80Mbps
2-way audio (G.711, G.726)

Video Recording and Backup

Scheduled recording of 16 IP cameras simultaneously
Samba path supported
Supports 2 SATA HDDs, up to 4TB per HDD, and 1 e-SATA interface
Exports recorded video file to AVI format to USB device or local storage
Instant event notification and recording

Network Service

Easy access with PLANET Dynamic DNS and built-in NTP Server
Supports PPPoE/DHCP/static network connection
Supports low bit-rate connection for remote access

Easy Installation and Management

ONVIF compliant for interoperability
Supports multiple languages
Auto discovered by management software
Web-based and management utility for easy configuration
Up to 256 channels management through central management software
Supports USB mouse and joystick (PTZ)*
Supports mobile phone remote view
*The joystick is optional

Teknik Özellikler

Hardware
LED	Power, HDD, LAN, REC, Event, Alarm, Camera, DI/DO
Button	Reset
Buzzer	1 x Buzzer
DI/DO	4 x Digital in, 4 x Digital out
USB Interface	2 x USB 2.0 for backup device and mouse
Video Interface	VGA and HDMI video interfaces
Audio Interface	1 x mic-in (phone jack 3.5mm), 1 x audio-out (phone jack 3.5mm)
Storage Device	2 x 3.5" SATA III hard disk connector, 1 x e-SATA connector
Ethernet	1 x RJ-45, 10/100/1000Base-T
Camera
Camera Added	Manual/Auto Search/Auto Setup
Max. Channels	16-channel IP cameras
Video
Max. Throughput	80Mbps
Snapshot	Preview snapshot in HDD or removable device
	Search event snapshot
	Backup to USB device
Resolution	5M/3M/Full HD/SXGA/VGA/QVGA
Max. Live Video Frame Rate (Local Display)	480fps@D130
	360fps@720P30
	120fps@1080P30
	20fps@5M15
	Max. 5MP/channel
Compression	H.264
Audio
Audio Format	G.711, G.726
Audio Type	2-way
Live view
PTZ Support	Preset, Tour, Auto Pan, Iris, Focus, Speed and Joystick
Display Mode	Live View, Playback, Full Screen
Split Screen	1, 4, 6, 9, 16, Full Screen
Full Screen	1, 4, 6, 9, 16
Playback
Split Screen	1, 4, 6, 9, 16, Full Screen
Search Mode	Simple, Graphical, Event
Play Method	Play, Reverse, Pause, Seek, Pre I-frame, Next Frame
Play Method	Search by time or event
Record
Recording Mode	Scheduled recording each camera
	Round the Clock, Motion Record mode, DI Detection, Event Triggering
	Pre-alarm/Post-alarm configuration
	Auto Recycle
Monitor
Monitor Resolutions	1920 x 1080, 1440 x 900, 1366 x 768, 1280 x 1024, 1024 x 768
Dual Monitor	Displays the contents, depending on max. channels
Network and Configuration
Network Service	Fixes IP/DHCP/PPPOE/DIPS Report/UPNP/DDNS
Notification	SMTP/HTTP/FTP/TCP
Triggers and Event
Event Type	Motion Alarm
	Alarm Disconnection
	Audio Detection
	Digital Input
	Scheduled Triggering
	HDD Error
Event Action	Display on Screen
	DO
	Buzzer Alarm
	Snapshot
	Recording
	Mail
	FTP
	TCP
	HTTP
Management
Number of Groups	2 (Administrator and User )
Privileges	Live View, Playback, Record, Setting, PTZ, Two-way Audio
User Interface	Graphic local user interface (operated by mouse)
	Web browser (Internet Explorer 7 or above)
	CMS Utility
Log Type	System/Event/Bit-rate
Software Utility	Search utility/Mobile app/CMS
Environment
Power	12V DC, 5A
Consumption	8W (without HDD)
Operating Temperature	0~40 degrees C
Storage Temperature	-40~70 degrees C
Humidity	0~85% (non-condensing)
Weight	1455g
Dimensions (W x D x H)	330 x 252 x 57 mm
