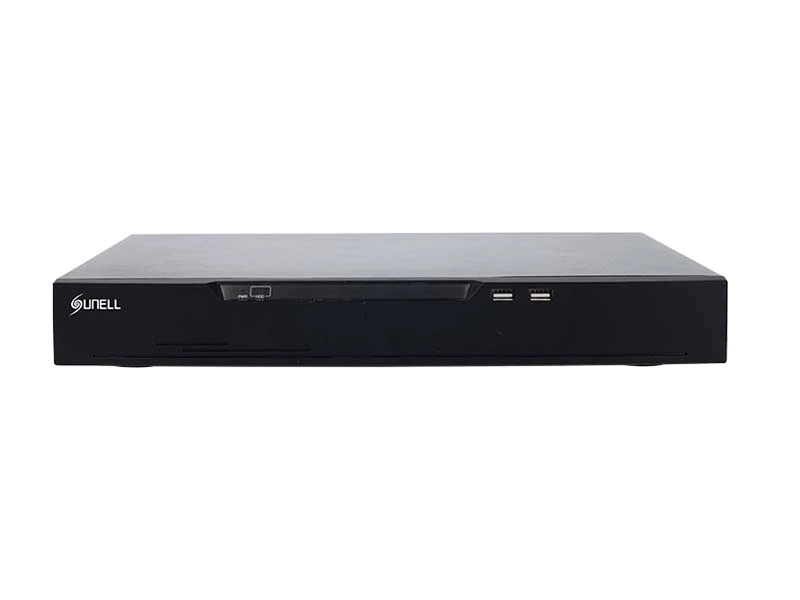

Sunell SN NVR2516E2 P16 NVR Kayıt Cihazı
Özellikler
- Up to 16ch IP cameras access
- Easy to use Same Interface of GUI/WEB/Client
- 2 SATA hard disk up to 8TB
- 1 RJ45 10M/100M/1000M network interface
- 16CH POE Ports
- Simultaneous HD-OUT&VGA up to 4K output
- 2 x 2.0 USB Host
- 8ch Alarm In/1ch Alarm Out1ch Audio I/O
Teknik Özellikler
| System | |
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 16 Channel |
| Two-way Talk | 1ch input, 1ch output |
| Display | |
| Interface | 1 HD-OUT, 1 VGA |
| Resolution | HD-OUT: 3840×2160,1920×1080,1440×900, 1280×1024 |
| VGA: 1920×1080, 1280×1024, 1280×720 | |
| Decoding Capacity | 16ch D1/8ch 720P/4ch 1080P/1ch 8MP@30fps |
| Multi-screen Display | 1/4/9/16 |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc. |
| Record Rate | 128Mbps |
| Bit Rate | 100Kbps ~ 8Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in |
| Record Interval | Post-record: 30 ~ 60 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, Buzzer, Push message, Pop up message |
| Video Detection | Motion Detection, Video Loss, Camera Tamper |
| Alarm In/Out | 8/1 |
| Playback and Backup | |
| Sync Playback | 16ch D1/8ch 720P/4ch 1080P /1ch 8MP |
| Search Mode | Time /Date, Alarm, Picture grid, Event |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device |
| Network | |
| Interface | 1 RJ-45 port (10M/100M/1000Mbps) |
| PoE Interface | 16ch 100Mbps, IEEE802.3af |
| PoE Max Power | 120W |
| Network Function | HTTP, TCP/IP, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, |
| Optical Fiber Interface | N/A |
| Max. User | Access 5 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 2 SATA Ports, up to 8TB for each HDD |
| Mounting Mode | Embedded |
| eSATA | N/A |
| Interface | |
| USB | 2 ports (USB 2.0 x2) |
| RS232 | N/A |
| RS485 | N/A |
| Audio I/O | 1ch MIC in, 1ch Audio line out |
| Reset Button | N/A |
| General | |
| Power Supply | AC100-240V |
| Power Consumption | < 5W (without HDD) |
| Operating Conditions | -10 °C ~ 45 °C (14 °F ~ 113 °F) |
| Storage Conditions | Less than 90% RH |
| Certifications | CE/FCC |
| Dimensions | 372×310.5×46.5mm |
| Net Weight | 2.1kg |
Sunell SN NVR2516E2 P16 NVR Kayıt Cihazı Pdf Dosyası321.07 KB
