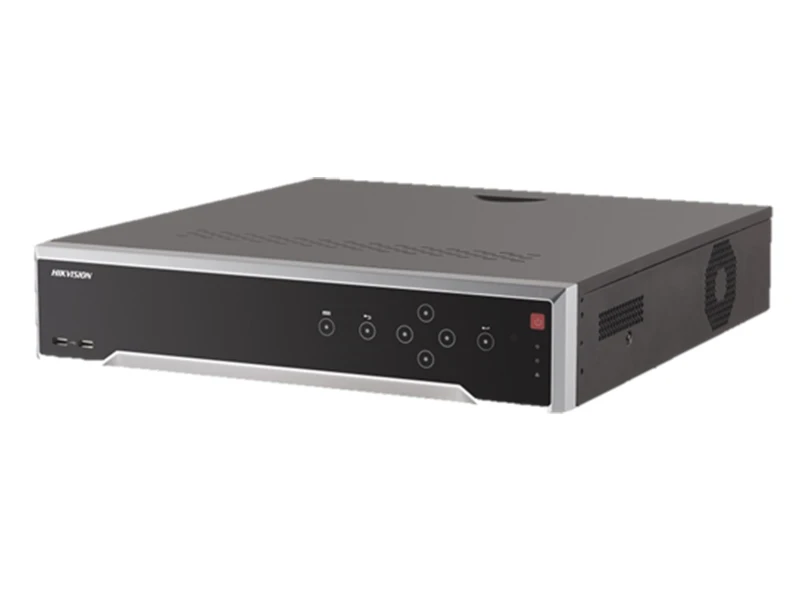

Hikvision iDS 7732NXI I4/16P/8S NVR Kayıt Cihazı
Teknik Özellikler
| Video/Audio Input | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input | 32-ch |
| Network | |
| Remote connection | 128 |
| Incoming bandwidth | 256Mbps |
| Outgoing bandwidth | 200Mbps |
| Video/Audio Output | |
| HDMI Output | 1-ch, resolution 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback | 16-ch |
| VGA Output | 1-ch, resolution 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Capability | 12-ch @ 1080p |
| Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk | |
| SATA | 4 SATA interfaces for 4HDDs |
| Capacity | Up to 6TB capacity for each HDD |
| External Interface | |
| Network Interface | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| Serial Interface | RS-232, RS-485, Keyboard |
| USB Interface | Front panel 2 × USB 2.0 |
| Rear panel 1 × USB 3.0 | |
| Alarm In | 16-ch |
| Alarm Out | 8-ch |
| General | |
| Power Supply | 100 to 240 VAC |
| Power | ≤300 W |
| Consumption(without hard disk and POE) | ≤30 W |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimensions | 445 × 390 × 70 mm (17.5"× 15.3" × 2.8") |
| Weight(without HDD) | ≤ 5 Kg (11 lb) |
Hikvision iDS 7732NXI I416P8S NVR Kayıt Cihazı Pdf Dosyası661.98 KB
