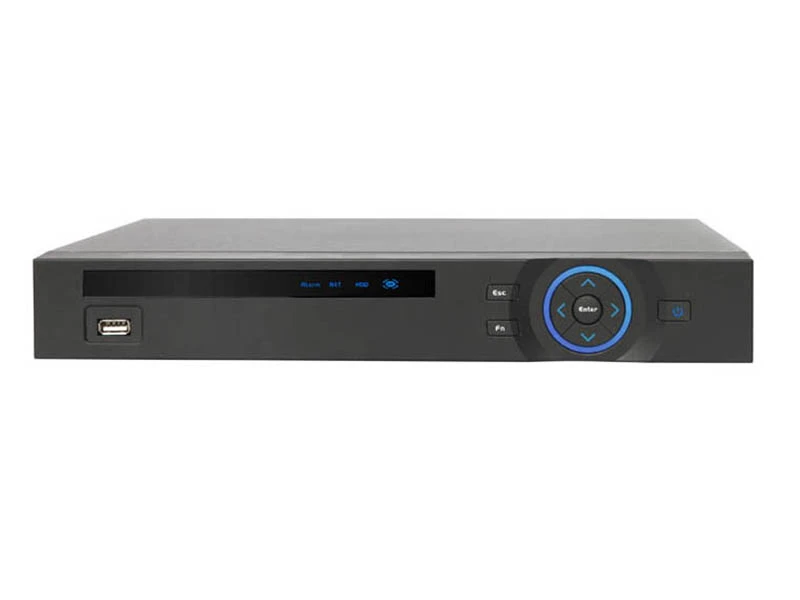

Dahua DH NVR3104H P NVR Kayıt Cihazı

Özellikler

Up to 4 cameras with 1080P realtime live view
H.264/MJPEG dual codec decoding
Max 120fps @ 1080P, 240fps @ 720P, 480fps @ D1 preview & recording
HDMI / VGA simultaneous video output
All channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
ONVIF Version 2. 0 conformance
3D intelligent positioning with Dahua PTZ camera
Support 1 SATA HDD up to 4TB, 2 USB2.0
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Teknik Özellikler

System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Video & Audio
IP Camera Input	4 channel
Two-way Talk	1 channel Input, 1 channel Output, RCA
Display
Interface	1 HDMI, 1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1.4
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264 / MJPEG
Resolution	1080P(1920 x 1080) / 720P(1280×720) / D1(704×576/704×480) & etc.
Record Rate	120fps@1080P, 240fps @ 720P, 480fps @ D1>
Bit Rate	48~8192kbps
Record Mode	Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	2 channel
Alarm Output	1 channel
Playback & Backup
Sync Playback
Search Mode	Time/Date, MD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device / Network
Network
Ethernet	1 RJ-45 port (10/100Mbps)
PoE	4 ports (IEEE802.3af), for –P model
Network Function	HTTP, TCP/IP, IPv4/Ipv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Storage
Internal HDD	1 SATA port, up to 4TB
Auxiliary Interface
USB	2 ports (1 Rear), USB2.0
General
Power Supply	NVR: DC12V/2A
Power Supply	PoE: DC48V/1.04A (for –P model)
Power Consumption	NVR: 12W (without HDD)
Power Consumption	PoE: Max. 15W each (for –P model)
Working Environment	°C~+50°C/10%~90%RH/86~106kpa
Dimension (W×D×H)	Mini 1U, 325mm×240mm×45mm
Weight	1.25kg (Without HDD)
