Açıklama

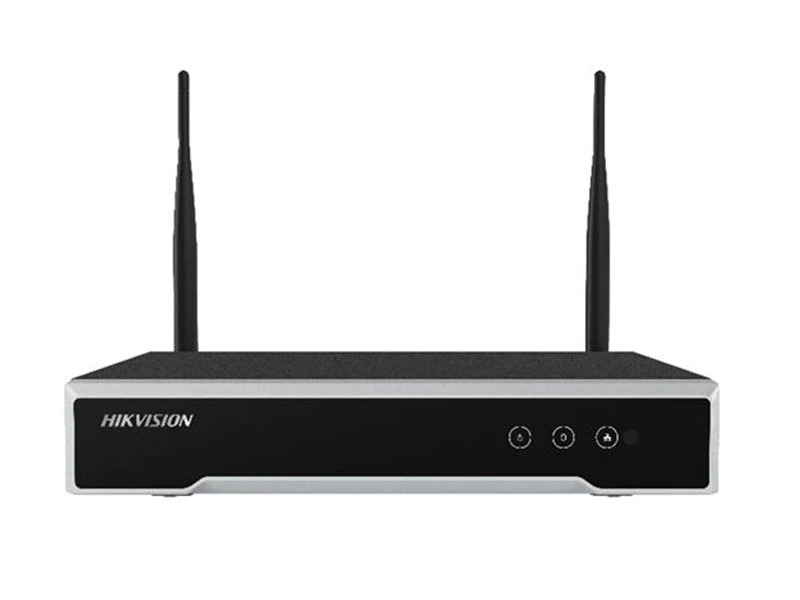

Hikvision DS 7104NI K1/W/M Wi-Fi NVR Kayıt Cihazı
Özellikler
- Provides Wi-Fi function
- Up to 16 terminals, including mobile phone and laptop, can access NVR via Wi-Fi
- HDMI and VGA output at up to 1920×1080P resolution
- Hik——Connect for easy network management
Teknik Özellikler
| Video/Audio Input | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input | 4-ch |
| Audio Input | 1-ch, RCA (2.0Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth | 50Mbps |
| Outgoing bandwidth | 40Mbps |
| Video/Audio Output | |
| HDMI/VGA output | 1-ch, resolution: |
| 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz | |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Decoding | |
| Capability | 1-ch @ 4 MP / 2-ch @ 1080p |
| Hard Disk | |
| Interface Type | 1 SATA interface |
| SATA | 1 SATA interface for 1 HDD |
| Capacity | Up to 6TB capacity for each HDD |
| External Interface | |
| USB Interface | 2, USB2.0 |
| General | |
| Power Supply | 12 VDC |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Dimensions | 260 × 246 × 48 mm (10.2" × 9.7" × 1.9") |
| Weight(without HDD) | ≤ 1 kg (2.2 lb) |
Hikvision DS 7104NI K1/W/M Wi-Fi NVR Kayıt Cihazı Pdf Dosyası668.5 KB
