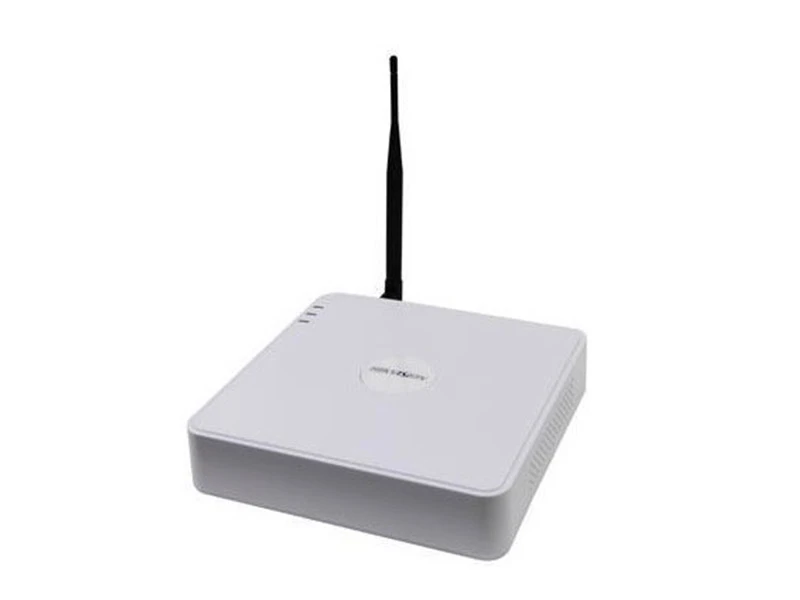

Hikvision DS 7104NI SLW NVR Kayıt Cihazı

H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
Up to 2-ch synchronous playback at 4 MP resolution or 4-ch at 1080p resolution
HDD quota and group modes; different capacity can be assigned to different channel
Smart search for the selected area in the video; and smart playback to improve the playback efficiency

Video / Ses Girişi
Ses girişi	1-ch, RCA (2.0Vp-p, 1kΩ)
Çift Yönlü Ses	2-ch, BNC(2.0Vp-p, 1kΩ)
Network
Incoming bandwidth	25Mbps
Outgoing bandwidth	40Mbps
Uzak Bağlantı	128
Video/Audio Output
HDMI/VGA output	1-ch, resolution:
	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
	1024 × 768 /60Hz
Recording Resolution	5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Ses Çıkışı	1-ch, RCA (Linear, 1kΩ)
Senkronize Yeniden Oynatma	4-ch@720P, 2-ch@1080P, 1-ch@5MP
Decoding
Live view / Playback	5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Hard Disk
SATA	1 SATA interface for 1 HDD
Kabiliyeti	Up to 4TB capacity for each HDD
Harici Arayüzü
Anten Arayüzü	1, with wireless AP function
Ağ Arayüzü	1 RJ-45 10 / 100 Mbps selfadaptive
Ağ Arayüzü	Ethernet interface
USB Arayüzü	2, USB2.0
General
Güç Kaynağı	12V DC
Tüketim (hard disk ve POE olmadan)	≤ 15 W
Çalışma Sıcaklığı	-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Çalışma Nem oranı	10 % ~ 90 %
Kasa	1U chassis
Boyutlar	200 × 200 × 45 mm
Ağırlık (HDD hariç)	≤ 1 Kg
