Açıklama

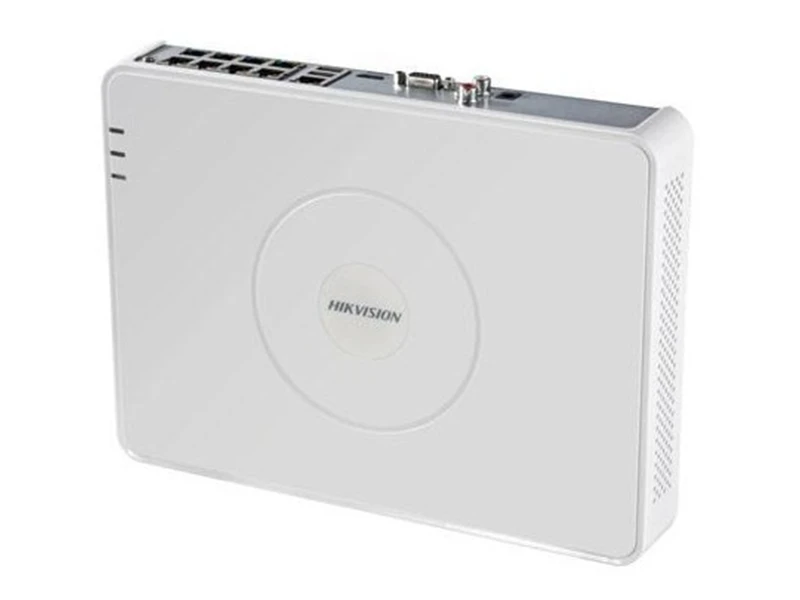

Hikvision DS 7W04NI E1 NVR Kayıt Cihazı

H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
Up to 2-ch synchronous playback at 4 MP resolution or 4-ch at 1080p resolution
HDD quota and group modes; different capacity can be assigned to different channel
Smart search for the selected area in the video; and smart playback to improve the playback efficiency

Video / Ses Girişi
İki Yönlü ses girişi	1-ch, RCA (2.0 Vp-p, 1kΩ)
IP Video girişi	4-ch
Network
Incoming bandwidth	40Mbps
Outgoing bandwidth	40Mbps
Video/Audio Output
HDMI/VGA output	1-ch, resolution:
HDMI/VGA output	1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Çerçeve Hızı	Main stream: 50 fps (P) / 60 fps (N)
Çerçeve Hızı	Sub-stream: 50 fps (P) / 60 fps (N)
Ses Çıkışı	1-ch, RCA (Linear, 1kΩ)
Decoding
Capability	4-ch@1080P
Hard Disk
SATA	1 SATA interface for 1 HDD
Kabiliyeti	Up to 6TB capacity for each HDD
Harici Arayüzü
Ağ Arayüzü	1 RJ-45 10 / 100 Mbps selfadaptive
Ağ Arayüzü	Ethernet interface
USB Arayüzü	2, USB2.0
General
Güç Kaynağı	12 VDC
Tüketim (hard disk ve POE olmadan)	≤ 18 W
Çalışma Sıcaklığı	-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Çalışma Nem oranı	10 % ~ 90 %
Boyutlar	200 × 205 × 48 mm (7.9" × 8.1" × 1.9")
Ağırlık (HDD hariç)	≤ 1 kg (2.2 lb)
