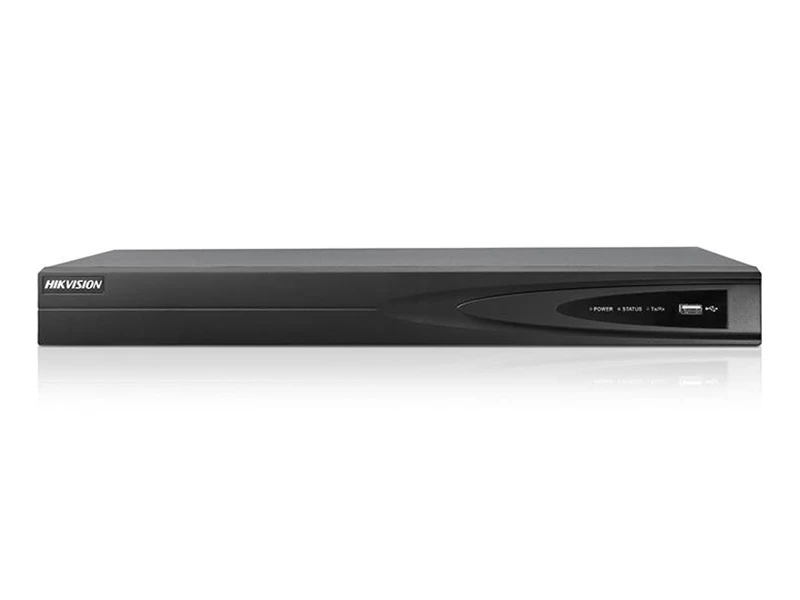

Hikvision DS 7R04NI E1/4P NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 6 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- 4/8/16-ch network cameras can be connected with 40M/80M/160M incoming bandwidth
- Up to 2 SATA interfaces
- Plug & Play with up to 8 independent PoE network interfaces
- Support network detection, including network delay, packet loss, etc
Teknik Özellikler
| Video / Ses Girişi | |
| İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP Video girişi | 4-ch |
| Network | |
| Incoming bandwidth | 40Mbps |
| Outgoing bandwidth | 80Mbps |
| Uzak Bağlantı | 128 |
| Video/Audio Output | |
| HDMI/VGA output | 1-ch, resolution: |
| 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, | |
| 1024 × 768 /60Hz | |
| Recording Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Çerçeve Hızı | Main stream: 50 fps (P) / 60 fps (N) |
| Sub-stream: 50 fps (P) / 60 fps (N) | |
| Ses Çıkışı | 1-ch, RCA (Linear, 1kΩ) |
| Senkronize Yeniden Oynatma | 4-ch |
| Decoding | |
| Live view / Playback | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 4-ch@1080P |
| Hard Disk | |
| SATA | 1 SATA interface for 1 HDD |
| Kabiliyeti | Up to 4TB for each disk |
| Harici Arayüzü | |
| Ağ Arayüzü | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Arayüzü | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm iç | 4-ch(optional) |
| Alarm dış | 1-ch(optional) |
| POE | |
| Desteklenen Standartlar | AF and AT |
| Max. Power | 50W |
| Arayüzü | 4 independent 100 Mbps PoE |
| network interfaces | |
| General | |
| Güç Kaynağı | 48V DC |
| Tüketim (hard disk ve POE olmadan) | ≤ 10W |
| Çalışma Sıcaklığı | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Çalışma Nem oranı | 10 % ~ 90 % |
| Kasa | 1U chassis |
| Boyutlar | 315 × 230 × 45mm |
| (12.4 ×9.1 × 1.8 inch) | |
| Ağırlık (HDD hariç) | ≤ 1 Kg (2.2 lb) |
Hikvision DS 7R04NI E1/4P NVR Kayıt Cihazı Pdf Dosyası891.06 KB
