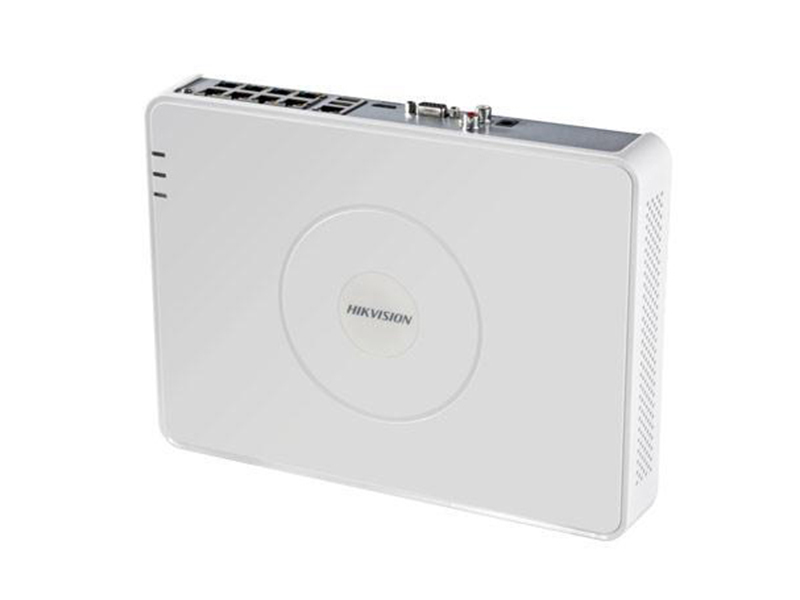

Hikvision DS 7V08NI E1/8P NVR Kayıt Cihazı

H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
Up to 2-ch synchronous playback at 4 MP resolution or 4-ch at 1080p resolution
HDD quota and group modes; different capacity can be assigned to different channel
Smart search for the selected area in the video; and smart playback to improve the playback efficiency

Video/Audio Input
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input	8-ch
Network
Incoming bandwidth	40Mbps
Outgoing bandwidth	40Mbps
Video/Audio Output
HDMI/VGA output	1-ch, resolution:
	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
	1024 × 768 /60Hz
Frame Rate	Main stream: 50 fps (P) / 60 fps (N)
Frame Rate	Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output	1-ch, RCA (Linear, 1kΩ)
Decoding
Capability	4-ch@1080P
Hard Disk
SATA	1 SATA interface for 1 HDD
Capacity	Up to 6TB capacity for each HDD
External Interface
Built-in switch network interface	4 independent 100 Mbps built-in
Built-in switch network interface	switch network interfaces
Network Interface	1 RJ-45 10 / 100 Mbps selfadaptive
Network Interface	Ethernet interface
USB Interface	2, USB2.0
POE
Supported Standard	AF and AT
Interface	4 independent 100 Mbps PoE
Interface	network interfaces
Max. Power	50W
General
Power Supply	48 VDC
Consumption(without hard disk and POE)	≤ 60 W
Working Temperature	-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity	10 % ~ 90 %
Chassis	Stand-alone 1U chassis
Dimensions	200 × 205 × 48 mm
Dimensions	(7.9" × 8.1" × 1.9")
Weight(without HDD)	≤ 1 kg (2.2 lb)
