Açıklama

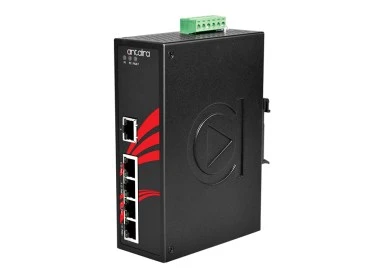

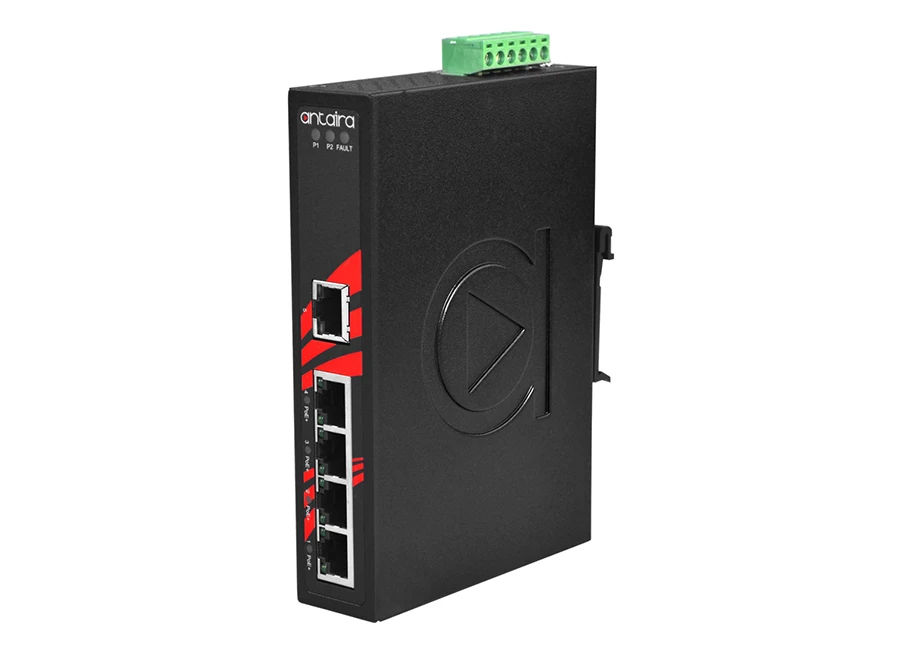

Antaira LNP-0500 Endüstriyel PoE Switch
Özellikler
- Network broadcast storm protection
- 4-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
- 1-Port 10/100Tx Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- EFT Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- Redundant Power Input Design – 48~55VDC
- Built-in 1 relay output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount support
- Operating Temperature range - STD: -10° to 70° C, EOT: -40° to 75° C
- 5-Year Warranty
Teknik Özellikler
| EMI | FCC Class A |
| EMS | EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8 EN6100-6-2; EN6100-6-4 |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| PROCESSING TYPE | Store and Forward |
| Protocols | CSMA/CD |
| Switching Architecture | Back-Plane (Switching Fabric): 1.0Gbps Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| MAC TABLE SIZE | 2K |
| Ethernet Port | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection 4*10/100 |
| PoE Pin Out | V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A) |
| EFT | 3,000 VDC for power line |
| ESD | 6,000 VDC for Ethernet |
| Input Voltage | 48~55VDC, Redundant Input |
| Overload Current Protection | Slow-Blown Fuse |
| Connector | 1 removable 4-contact terminal block |
| Reverse Polarity Protection | Yes |
| PoE Power Output | 25W @ 48VDC (per PoE port); 30W @ 51~55VDC (per PoE port) |
| Power Consumption | 110 Watts @ 48VDC; 130 Watts @ 51~55VDC |
| Housing | Metal, IP30 protection |
| Dimensions | 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.) |
| Weight | Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs |
| Mounting | DIN-Rail mounting, wall mounting (optional) |
| Operating Temperature | STD: -10° to 70° C (14° to 158° F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Humidity | 5 to 95%, (non-condensing) |
| Free Fall | IEC60068-2-32 |
| Shock | IEC60068-2-27 |
| Green | RoHS Compliant |
| Certifications | FCC, CE, UL508 |
| Vibration | IEC60068-2-6 |
| Warranty | 5 Years |
Antaira LNP-0500 Endüstriyel PoE Switch Pdf Dosyası226.05 KB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Türü : Gbit Fiber
Aktarım Port Sayısı : 1
PoE Port Sayısı :
4 Port
4 Port
