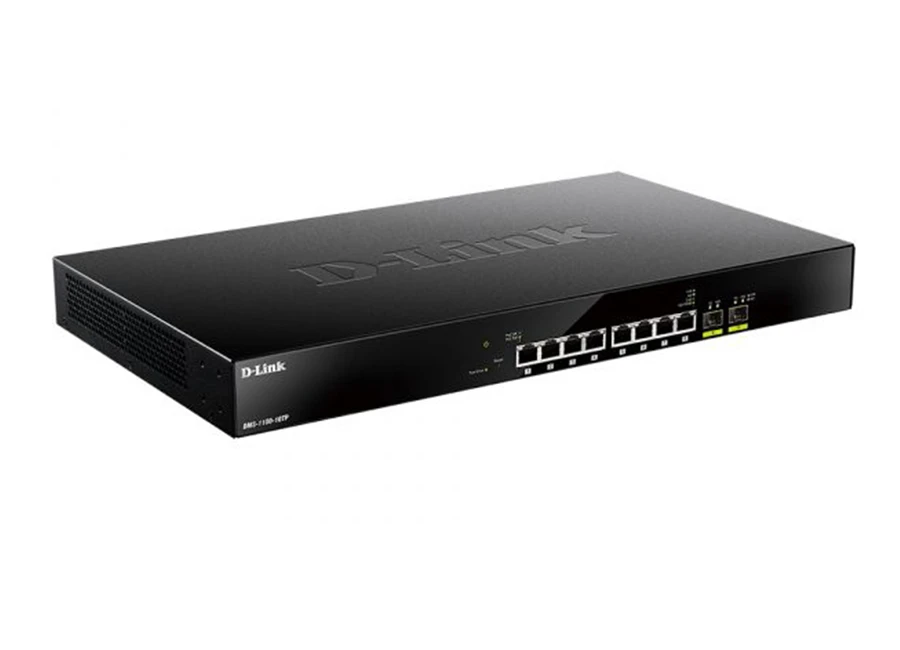

D-Link DMS 1100 10TP PoE Switch
Teknik Özellikler
| Interfaces |
| • 8 100/1000/2.5GBASE-T PoE ports |
| • 2 SFP+ ports |
| Port Standard & Functions |
| • IEEE 802.3u 100Base-TX |
| • IEEE 802.3ab 1000Base-T |
| • IEEE 802.3z 1000Base-X |
| • IEEE 802.3bz 2.5GBase-T |
| • IEEE 802.3ae 10G over fiber |
| • IEEE 802.3az |
| • IEEE 802.3af |
| • IEEE 802.3at |
| Diagnostic LEDs |
| • Power |
| • Link/Activity (Per port) |
| • FAN error |
| • PoE Status |
| Network Cables for 2.5GBase-T |
| • Cat 5e (100 m max) |
| Media Interface Exchange |
| • Auto MDI/MDIX adjustment for all twisted-pair ports |
| Switching Capacity |
| • 80 Gbps |
| Maximum Packet Forwarding Rate |
| • 59.52 Mpps |
| Transmission Method |
| • Store-and-forward |
| MAC Address Table |
| • 16K entries per device |
| Packet Buffer |
| • 1.5 Mbytes |
| Jumbo Frame |
| • 9 Kbytes |
| PoE Budget |
| • 240 W |
| Software |
| L2 Features |
| • Flow control |
| • 802.3x Flow control |
| • HOL Blocking Prevention |
| • IGMP Snooping |
| • IGMP v1/v2/v3 Snooping |
| • Supports 192 groups (shared with MLD Snooping) |
| • IGMP Snooping Querier |
| • IGMP Snooping Fast Leave |
| • MLD Snooping |
| • MLD snooping v1/v2 |
| • Supports 192 groups (shared with IGMP Snooping) |
| • MLD Snooping Querier |
| • MLD Snooping Fast Leave |
| • 802.3ad Link Aggregation: |
| • Support 8 groups per device and 8 ports per group |
| • Loopback Detection V4.07 |
| • LLDP/LLDP-MED |
| • Port Mirroring |
| • One-to-One |
| • Many-to-One |
| • Mirror based on Tx |
| • Mirror based on Rx |
| • Statistics |
| • Tx Ok |
| • Tx Error |
| • Rx Ok |
| • Rx Error |
| • Spanning Tree Protocol |
| • 802.1D STP |
| • 802.1w RSTP |
| • Ethernet Ring Protection Switching |
| • G.8032 ERPS single ring |
| • 16 max nodes per ring |
| VLAN |
| • 802.1Q tagged VLAN |
| • Port-based VLAN |
| • Auto Surveillance VLAN 2.0* |
| • Voice VLAN |
| • Asymmetric VLAN |
| • VLAN Group |
| • Supports 4094 static VLAN groups |
| • Max. 4094 VIDs |
| Quality of Service (QoS) |
| • 802.1p Quality of Service |
| • 8 queues per port |
| • Strict Priority Queue (SPQ) |
| • Weighted Round Robin (WRR) |
| • Port-based bandwidth control (rate limiting) |
| • Port-based bandwidth control |
| • Ingress bandwidth control |
| • Egress bandwidth control |
| Security |
| • D-Link Safeguard Engine |
| • Traffic segmentation |
| • Broadcast/Multicast/Unknown Unicast Storm Control |
| • DoS attack prevention |
| • SSLv3/TLS 1.2 |
| • IPv4 support |
| • IPv6 support |
| OAM |
| • Cable diagnostics |
| • Factory reset |
| AAA |
| • Trusted Host |
| Management |
| • Web-based GUI (supports IPv4/IPv6) |
| • Smart Wizard |
| • Client-based D-Link Network Assistant (DNA) |
| • SNTP |
| • SNMP |
| • Supports v1/v2c |
| • SNMP trap |
| • System log |
| • DHCP/BootP client |
| • TFTP client |
| • D-Link Discovery Protocol (DDP) |
| • Dual images |
| • Dual configurations |
| • Ping |
| Green Technology |
| • Power saving features |
| • LED shutoff |
| • Link status |
| • Port shutoff |
| • System hibernation |
| • Time-based PoE |
| MIB/RFC Standards |
| • RFC768 UDP |
| • RFC791 IP |
| • RFC792 ICMP |
| • RFC793 TCP |
| • RFC826 ARP |
| • RFC1213 MIB II |
| • RFC1493 Bridage MIB |
| • RFC1907 SNMPv2 MIB |
| • RFC4363 IEEE 802.1p MIB |
| • ZoneDefense MIB |
| • Private MIB |
| • PoE MIB |
| Physical Parameters |
| Power Input |
| • 100 to 240 V AC |
| Maximum Power Consumption |
| • 293.4 W (PoE on) |
| • 38.1 W (PoE off) |
| Standby Power Consumption |
| • 27.3 W |
| Heat Dissipation |
| • 1000.91 BTU/h |
| MTBF |
| • 676,329 hours |
| Weight |
| • 3.43 kg |
| Dimensions |
| • 440 x 250 x 44 mm |
| Temperature |
| • Operating: -5 to 50 °C |
| • Storage: -40 to 70 °C |
| Humidity |
| • Operating: 0% to 95% non-condensing |
| • Storage: 0% to 95% non-condensing |
| EMI |
| • CE |
| • FCC |
| • C-Tick |
| • VCCI |
| • BSMI |
| • CCC |
| Safety |
| • cUL |
| • CB |
| • CE |
| • CCC |
| • BSMI |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 200-400 Watt
