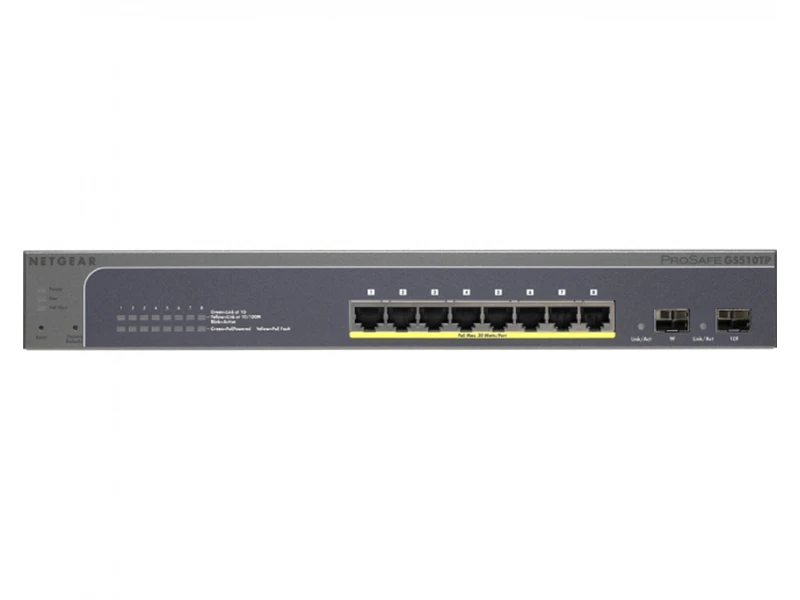

Netgear NG GS510TP 10/100/1000 PoE Switch
Teknik Özellikler
| Format & Standards |
| Format |
| External |
| Standards |
| IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE 802.3at (Power over Ethernet Plus) |
| Network Management Type |
| Smart |
| Ports & Interface |
| Primary Ports |
| 8 x RJ45 + 2 x SFP |
| Primary Port Speed |
| 10/100/1000Mbps |
| Data Transmission |
| MAC Address Table |
| 4K |
| Switching Method |
| Store and Forward |
| VLAN Support |
| Yes |
| Details |
| Buffer Memory |
| 512KBytes |
| PoE |
| Yes |
| SNMP |
| Yes |
| QoS |
| Yes |
| LACP |
| Yes |
| Port Mirroring |
| Yes |
| Module Support |
| Yes |
| LEDs |
| Per port (10/100 and Gigabit):Link/activity, speed |
| Per device: Power, Fan, PoE Max |
| Per PoE port: PoE Power, PoE fault |
| Power |
| 100-240VAC/50-60-Hz universal input |
| PoE budget: 130W |
| Power consumption: 147 W maximum |
| Features |
| Performance: |
| Bandwidth: 20 Gbps |
| Addressing: 48-bit MAC address |
| Mean time between failures (MTBF): 458,124 hours at 25C (~52.3 years) |
| Acoustic noise: <38 dba="" li=""> |
| Modules: |
| AGM731F 1000BASE-SX SFP Module |
| AGM732F 1000BASE-LX SFP Module |
| AGM733 1000BASE-ZX SFP Module |
| System Requirements: |
| Category 5 UTP Network cables or above |
| Network card for each PC |
| Network software (e.g., Windows) |
| Web browser (e.g., Internet Explorer 6.0 or higher, Netscape 6.0 or higher) |
| Administrative Switch Management: |
| IEEE 802.1Q Static VLAN (64 groups, static) |
| IEEE 802.1p Class of Service (CoS) |
| Port-based QoS |
| DSCP-based QoS |
| DiffServ |
| IEEE802.3ad link aggregation (manual or LACP) |
| IEEE 802.1D Spanning Tree Protocol (STP) |
| IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) |
| IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| IEEE 802.1ab Link Layer Discovery Protocol (LLDP) |
| LLDP-MED |
| SNMP v1, v2c, v3 |
| RFC 1213 MIB II |
| RFC 1643 Ethernet interface MIB |
| RFC 1493 bridge MIB |
| RMON group 1, 2, 3, 9 |
| RFC 2131 DHCP client |
| Voice VLAN |
| Auto-VOIP |
| DHCP Filtering |
| Auto denial-of-service (DoS) protection |
| HTTP and HTTPS |
| Ping and traceroute |
| Power saving when link down |
| IEEE 802.1x |
| Port-based security by locked MAC addresses |
| IP and MAC ACL |
| Storm control for broadcast, multicast and unknown unicast packets |
| IGMP Snooping v1/v2/v3 |
| Protected Port |
| PoE Timer |
| Port-based ingress and egress rate limiting |
| SNTP |
| Port mirroring support (many to one) |
| Web-based configuration |
| Configuration backup/restore |
| Password access control |
| RADIUS Support |
| TACACS+ support |
| Syslog |
| Firmware upgradeable. |
| Dimensions & Weight |
| Dimensions |
| 12.91" x 6.65" x 1.7" |
| Weight |
| 3.7 lbs. |
| Environmental |
| Temperature |
| ºC to 50ºC (32ºF to 122ºF) |
| Humidity |
| 90% Maximum, Non-condensing |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
Montaj Tipi : Rack Mount
