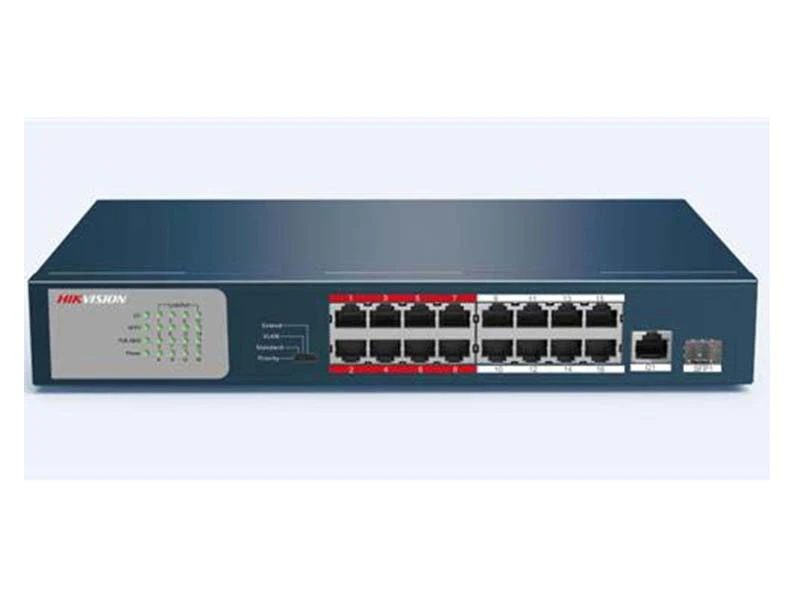

Hikvision DS 3E0318P E/M PoE Switch

Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.1Q, and IEEE802.3x Ethernet standards
16*10/100 Base-TX Ethernet ports, one 10/100/1000 Base-T Ethernet port and one 10/100/1000 Base-X SFP optical module port
Ports 1 - 16 are 10/100 Mbps downlink ports and comply with IEEE 802.3af and IEEE 802.3at.
The maximum of 30W port output PoE power and the maximum of 135W total output PoE power
Support four network modes: Priority, Standard, Isolate and Extend
4K MAC address and MAC address learning
7.2 Gbps backplane bandwidth
Store-and-Forward switching
All-mental construction
13 inch length and 1 U standard height size allow it to be mounted on subrack.

PoE : PoE

Port Hızı : 100 Mbps

Yönetilebilirlik : Yönetilemez

Aktarım Port Sayısı : 2

Aktarım Türü : Combo

PoE Port Sayısı : Tooltip

16 Port

PoE Güç Bütçesi : 130-200 Watt

Ports
10/100M RJ45	16
10/100/1000M RJ45	1
1000M SFP	1 independent
Port of high priority	Port 1 - 8
Performance
Switching Capacity	7.2 Gbps
Store-and-forward	Supported
MAC address table	4 k
MAC address learning	Auto-learning/ Auto-aging
Power Over Ethernet
PoE Standard	IEEE 802.3af, IEEE802.3at
Working Mode	Priority, Standard, Isolate, Extend
PoE cable core	Supports 8-pin power supply
PoE port	Oca.16
Port max. power	30 W
Switch max. power	135 W
General
Power Supply	100~240 V AC，50/60 Hz
Power Consumption	≤150w
Working Temperature	Operating Temperature: 0 °C ~ 40 °C
Working Humidity	Operating Humidity: 10% - 90% RH non-condensing
Storage Temperature	Storage Temperature: -40 °C ~ 70 °C
Storage Humidity	Storage Humidity: 5% - 90% RH non-condensing
