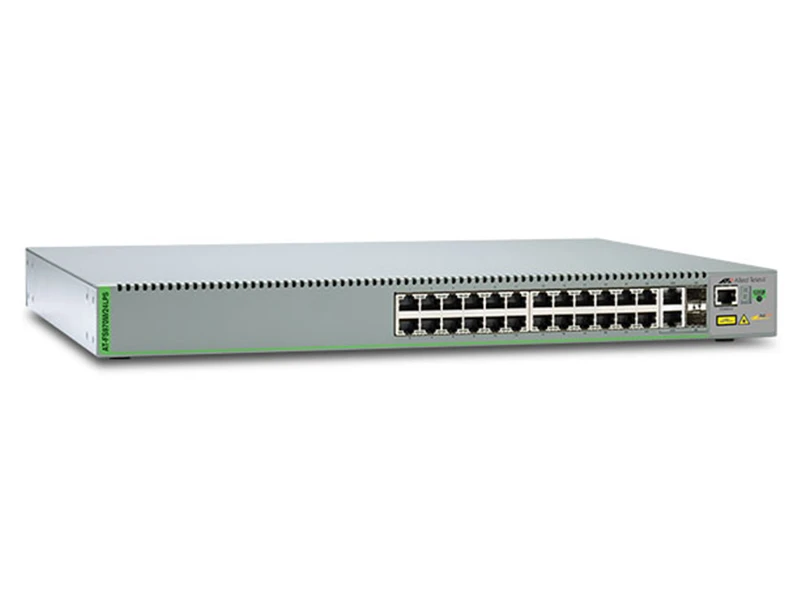

Allied Telesis AT FS970M/24LPS 10/100 PoE Plus Switch
Teknik Özellikler
| General |
| Device Type |
| Switch - 24 ports - Managed - stackable |
| Enclosure Type |
| Desktop, rack-mountable - 1U |
| Subtype |
| Fast Ethernet |
| Ports |
| 24 x 10/100 (PoE+) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 185 W |
| Performance |
| Switching capacity : 8.8 Gbps |
| Forwarding performance : 6.5 Mpps |
| MAC Address Table Size |
| 16K entries |
| Jumbo Frame Support |
| 9198 bytes |
| Max Units In A Stack |
| 24 |
| Routing Protocol |
| RIP-1, RIP-2, static IPv4 routing |
| Remote Management Protocol |
| SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Encryption Algorithm |
| LEAP, MD5, TLS, SSL 3.0, PEAP, TTLS |
| Authentication Method |
| Secure Shell (SSH), RADIUS, TACACS+ |
| Compliant Standards |
| IEEE 802.2, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| Processor |
| 266 MHz |
| RAM |
| 128 MB |
| Flash Memory |
| 16 MB |
| Expansion / Connectivity |
| Interfaces |
| 24 x 100Base-TX - RJ-45 - PoE+ |
| 2 x Gigabit LAN - SFP - uplink |
| 2 x 1000Base-T - RJ-45 - uplink |
| Power |
| Power Device |
| Internal power supply |
| Voltage Required |
| AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational |
| 230 Watt |
| Miscellaneous |
| Cables Included |
| 1 x console cable |
| Rack Mounting Kit |
| Included |
| Compliant Standards |
| FCC Class A certified, TUV, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, UL 60950-1, EN 60950-1, EN 60825, cULus, VCCI Class A, China RoHS |
| Localisation |
| Europe |
| Dimensions & Weight |
| Width |
| 44.1 cm |
| Depth |
| 32.3 cm |
| Height |
| 4.4 cm |
| Weight |
| 4.4 kg |
| Environmental Parameters |
| Min Operating Temperature |
| 0 °C |
| Max Operating Temperature |
| 40 °C |
| Humidity Range Operating |
| 5 - 90% (non-condensing) |
| Min Storage Temperature |
| -25 °C |
| Max Storage Temperature |
| 70 °C |
| Humidity Range Storage |
| 5 - 95% (non-condensing) |
Allied Telesis AT FS970M/24LPS 10/100 PoE Plus Switch PDF Dosyası1.18 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
PoE Güç Bütçesi : 130-200 Watt
PoE Port Sayısı :
24 Port
24 Port Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
