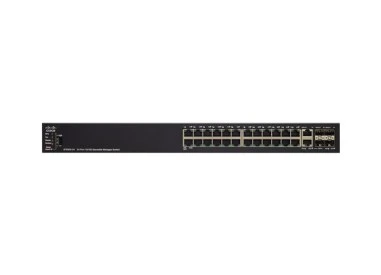

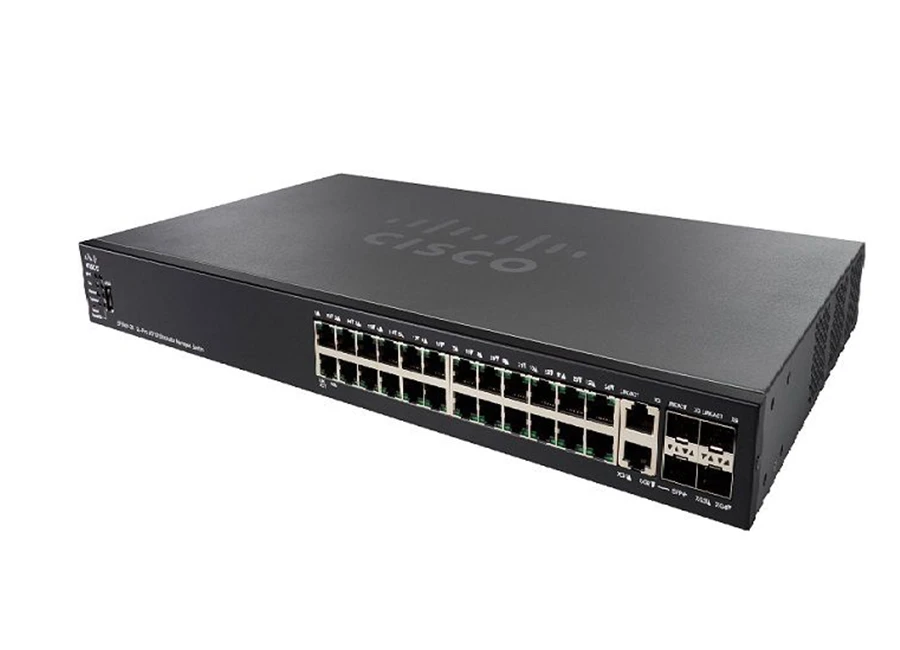

Cisco SF550X 24MP PoE Switch

Teknik Özellikler

Product Name	SF550X-24MP
General
Product ID	SF550X-24MP-K9
Short Description	Switch: L3 managed, 24 x 10/100 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, Max PoE
Device type	Switch: 100M, 24 ports, L3 managed382 W,
Enclosure type	Rack-mountable, 1RU
Ports	24 x 10/100 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE)	PoE, PoE+ and 60W PoE (382W)
Switching capacity	84.8 Gbps
Forwarding performance (64-byte packets)	63.09 Mpps
MAC address table size	16,000 entries
Capacity (active VLANS)	4000
Routing protocol	RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol	SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features	Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support,
	IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support,
	Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button,
	LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security,
	static routing, dynamic routing, policy based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy
Compliant IEEE standards	802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM	512 MB
Flash memory	256 MB
Status indicators	System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Expansion and Connectivity
Interfaces	24 x 10BASE-T/100Base-TX, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power
Power supply	Internal
Voltage required	AC 120/230V (50/60 Hz)
Miscellaneous
Width	17.3 in. (440 mm)
Depth	13.8 in. (350 mm)
Height	1.7 in. (44 mm)
Weight	10.45 lb (4.74 kg)
Cables included	1 x console cable
Compliance standards	UL 60950, FCC Part 15 A, CSA 22.2
Manufacturer Warranty
Service and support	Enhanced limited lifetime warranty
Service and support details	Next business day hardware replacement. Software updates. 1-year complimentary telephone and online technical support.
Environmental Parameters
Minimum operating temperature	32-F (0-C)
Maximum operating temperature	122-F (50-C)
Humidity range operating	10-90% (noncondensing)
Minimum storage temperature	-4-F (-20-C)
Maximum storage temperature	158-F (70-C)
Humidity range storage	10-90% (noncondensing)
