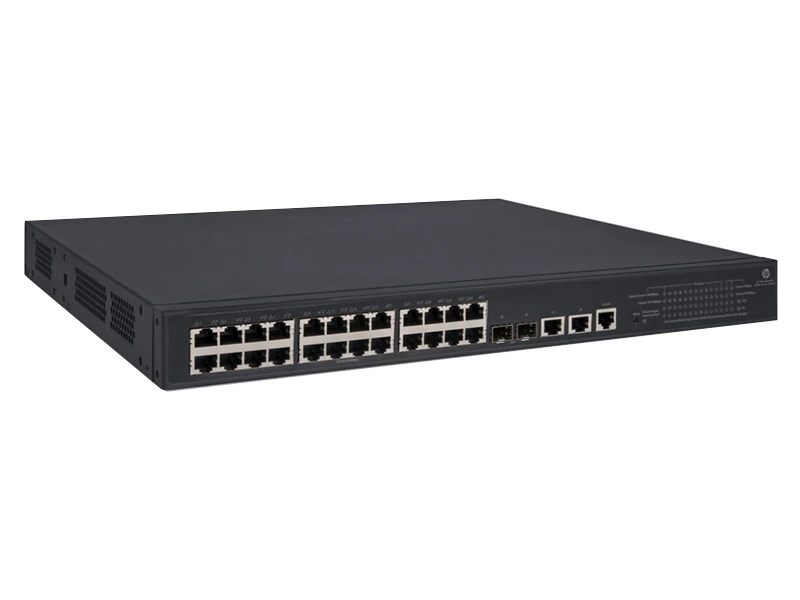

HP 1950 24G 2SFP Plus 2XGT PoE Plus JG962A 10/100/1000 PoE Switch
Teknik Özellikler
| Product series |
| HP 1950 Switch Series |
| Model |
| 24G-2SFP+-2XGT-PoE+(370W) |
| Switch type |
| Fixed Port Web Managed Ethernet Switches |
| Ports |
| 24 RJ-45 auto-negotiating 10/100/1000 PoE+ ports |
| PoE |
| Yes |
| SFP ports |
| 2 SFP+ fixed 1000/10000 SFP+ ports |
| Additional ports |
| 2 RJ-45 1/10GBASE-T ports |
| Memory and processor |
| Module |
| 128 MB flash; 1 GB SDRAM |
| Buffer size |
| 1.5 MB |
| Mounting |
| Mounts in an EIA standard 19-inch telco rack or equipment cabinet |
| Mounting hardware |
| Included |
| Performance |
| 100 Mb Latency |
| < 5 µs |
| 1000 Mb Latency |
| < 5 µs |
| Throughput |
| up to 95.2 Mpps (64-byte packets) |
| Routing/Switching capacity |
| 128 Gbps |
| Routing table size (IPv4) |
| 32 entries |
| Routing table size (IPv6) |
| 32 entries |
| MAC address table size |
| 16384 entries |
| Reliability |
| MTBF (years) |
| 44.4 |
| Electrical characteristics |
| Electrical Frequency |
| 50 / 60 Hz |
| Voltage |
| 100-240 VAC |
| Maximum power rating |
| 425 W |
| PoE power |
| 370 W PoE+ |
| Enviroment |
| Operating temperature |
| 32°F to 113°F (0°C to 45°C) |
| Nonoperating/Storage temperature |
| 40°F to 158°F (-40°C to 70°C) |
| Acoustic |
| Low-speed fan: 37.3 dB, High-speed fan: 47.1 dB; ISO 7779 Dual speed fan |
| Standard & certifications |
| Safety |
| UL 60950; IEC 60950-1; EN 60950-1; GB 4943.1 |
| Emissions |
| FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A |
| Management |
| IMC - Intelligent Management Center; Limited command-line interface; Web browser; |
| SNMP Manager; HTTPS; RMON1; FTP; Supported by HP IMC and generic SNMP management platforms. |
| Refer to documentation for MIB support details. |
| Physical characteristics |
| Dimensions |
| 17.32(w) x 14.17(d) x 1.73(h) in (44 x 36 x 4.4 cm) |
| Rack height |
| 1U |
| Weight |
| 13.23 lb (6 kg) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
