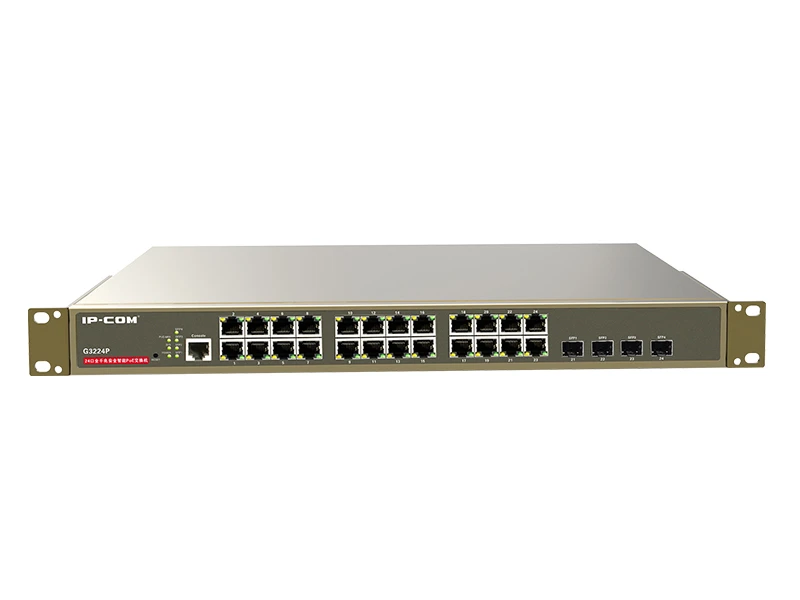

IP-COM G3224P Gigabit PoE Switch

Özellikler

Support VLAN
Provide comprehensive QoS
Power Over Ethernet up to 370 Watt

Teknik Özellikler

Features
Description	24-Port 10/100/1000 PoE Manage Switch
Standard and protocol	IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.3af、IEEE 802.3at
linear-speed exchange on the second layer	linear-speed of all ports up to 35.7Mpps
Backplane bandwidth	56Gbps
Performance	Store and forward
Performance	Yes
Exchange capacity	56Gbit/s
MAC Address entries	8K
MAC Address entries	Support setting the maximum number of MAC addresses for learning
Port and Module	Fixed ports
	24 GE Ports
	1 console
	4 SFP (combo)
Optional modules	SFP modules
Indicators	POWER,SYS,LINK/ACT,SPEED,SFP,POE
Optional power supply	Power supply module
	Providing 24 port under 802.3af(15.4W) or 12 ports under 802.3at(30W).
	PoE through 1 2 3 6 pin
Voltage input range	AC 100V~240V ；50/60Hz
Dimension	44028444mm (LWH)
Weight	5kg
Power consumption	Total power consumption up to 450W
Power consumption	PoE consumption up to 370W
Operating temperature	ºC～45ºC
Storage temperature	-40ºC～70ºC
Relative humidity	Operational:10%～95%（noncondensing）
Relative humidity	Storage:10%～95%（noncondensing）
Software Feature
Link aggregation	Support LACP
	Support manual link aggregation
	Support up to 12 link aggregation groups and up to 16 GE ports per link aggregation group
PoE management	Support setup of PoE and power adjustable by priority
	Support over temperature protection for PoE module
	Support graphical management, detection of PD equipment and setting of the power consumption
network protocol	Support STP/RSTP/MSTP
network protocol	Support looped Network for devices
VLAN	Support VLAN(4K) based on ports and stardand
VLAN	Support Voice VLAN, VLAN Mapping, VLAN VPN（QinQ）
DHCP	Support DHCP Snooping、DHCP Relay/Client/Server
DHCP	Support DHCP Snooping Option82/DHCP Relay Option82
QoS/ACL	Support ACL
	Provide advanced security strategies and L2~L4 packet filter
	Support ACL based on Time Range
Support QoS	Support message transmission for ports and limitation of speed
	Support redirect message and CAR
	Support 8 ports for output sequence
	Support SP&WRR
	Support remark for 802.1p/DSCP priority
	Support management for QoS Profile
Security service	Support management for user classification and password protection
	Support IEEE 802.1X authentication
	Support centralized MAC address authentication
	Support intrusion detection of ARP and protection of IP source address
	Support SSH2.0 and port isolation
Management and maintenance	Support downloading and upgrading through XModem/FTP/ TFTP
	Support configuration through CLI, Telnet, Console port
	Support SNMP v1/v2/v3 and WEB-based management
	Support RMON(Remote Monitoring)
	1,2,3,9 RMON groups of MIB information
	Support system log, hierarchical alarm, debugging information output
	Support PING, Traceroute, Multicast Traceroute
	Support remote maintenance through telnet
	Support DLDP
	Support loopback detection
