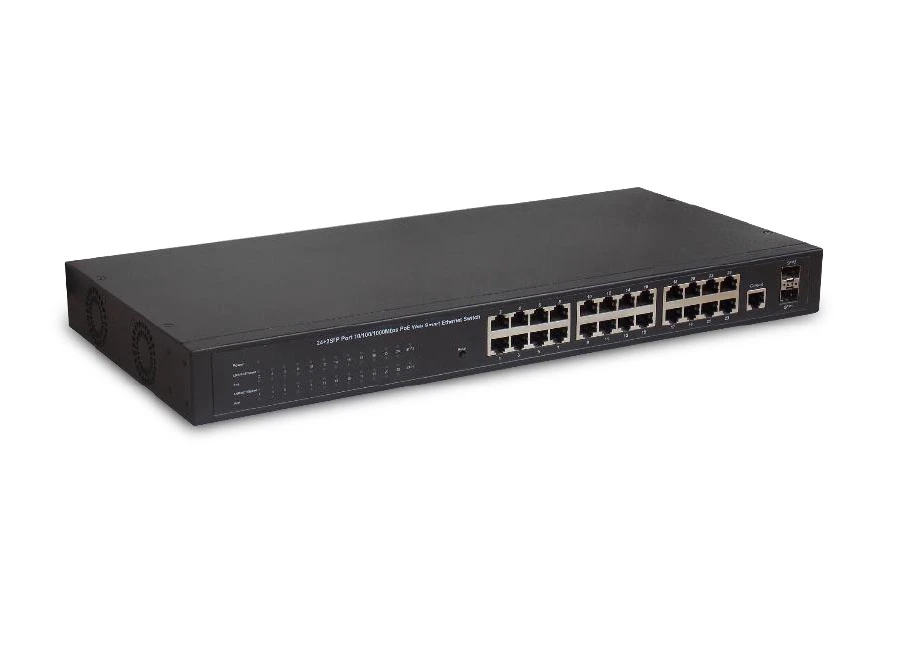

DCN ES420-26P-POE Access PoE Switch

Özellikler

24 10/100/1000M auto-negotiation RJ45 ports
2 Gigabit fiber ports
Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.1p standards
Support IEEE 802.3af and 802.3at standards
The maximum output of each port supports 30W, and the total power can reach 330W
Store-and-forward architecture
Support IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control
Support Web interface management
Support MAC address self-learning
Dynamic LED indicator provides simple working status prompts and troubleshooting
Built-in power supply, iron shell structure design, suitable for rack installation

Teknik Özellikler

Interface		24 10/100/1000M auto-negotiation RJ45 (Auto MDI/MDIX) ports
		2 Gigabit SFP ports
Performance
Switching Capacity		96Gbps
Forwarding Rate		38.7Mpps
MAC address table		8K
Jumbo Frame		9K
ACL Table		IP ACL 50，ipv6 ACL 64，MAC ACL30, Expert ACL 30
Queues per port		8
VLAN Table		4094
Supported standards and protocols		IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.1p
Physical
Network Medium		10Base-T, 100Base-TX: Cat-5 or above UTP
		1000Base-T: Cat-5e or above UTP
LED indicator	Port	Link/Act/Speed, PoE Status, SFP1, SFP2
	Other	Power
Dimension (L x W x H)		44020844mm
PoE		IEEE 802.3af PoE (15.4W)
		IEEE 802.3at PoE+(30W)
		Maximum Output Power 330W
Power Input		100-240V, 50/60Hz
Power consumption		390W
Temperature		Working 0℃～40℃, Storage -10℃～70℃
Relative Humidity		Working 10%～90% non-condensing
		Storage 5%～90% non-condensing
Main Features
Forwarding		Store and Forward
VLAN		IEEE802.1Q, MAC VLAN, Protocol VLAN, IP Subnet VLAN, Voice VLAN
		GVRP
		Static QinQ, Flexible QinQ, VLAN Translation
DHCP		IPv4/IPv6 DHCP Snooping, IPv4/IPv6 DHCP Server, DHCPv4 Option 82
Reliability	Spanning Tree	802.1D STP, 802.1W RSTP, 802.1S MSTP
		Root Guard, BPDU Guard, BPDU Forwarding
	LACP	8 groups / 8 ports
	L2 Ring Protection	Loopback-detection
Security		Standard IP ACL, extended IP ACL, MAC ACL, User-defined ACL
		Storm Control based on packets and bytes
		Port-security, MAC Limit based on Port, error-disabled
		CPU-car, BPDU-car, Anti-ARP-Flood, Anti-ARP-Spoofing, Anti-DOS Attack
		IEEE 802.1x
		Authentication, Authorization, Accounting
		Radius, TACACS+
		IP Source Guard, Port Isolation, Private VLAN
Multicast		IGMP v1/v2/v3 snooping, IGMP Fast leaveMVR
		MLD v1/v2 snooping
QoS		8 Queues Per PortBandwidth ControlFlow ControlClassification based on ACL, VLAN ID, COS, DSCPRemark DSCP, COS
		SP, RR, WRR, SP+ WRR, WFQ, SP+WFQ for Scheduling
Maintenance and Operation Management		TFTP/FTPCLI, Telnet, SSH, Console, WebSNMPv1/v2c/v3SNMP TrapRMON 1,2,3,9
		Ping, Trace Route
		Radius Authentication
		Syslog
		SNTP Client
		Port Mirror, CPU Mirror
		OAM EFM
		VCT, DDM
		LLDP
Green Energy		IEEE 802.3az (Energy Efficient Ethernet)
		Fanless
