Açıklama

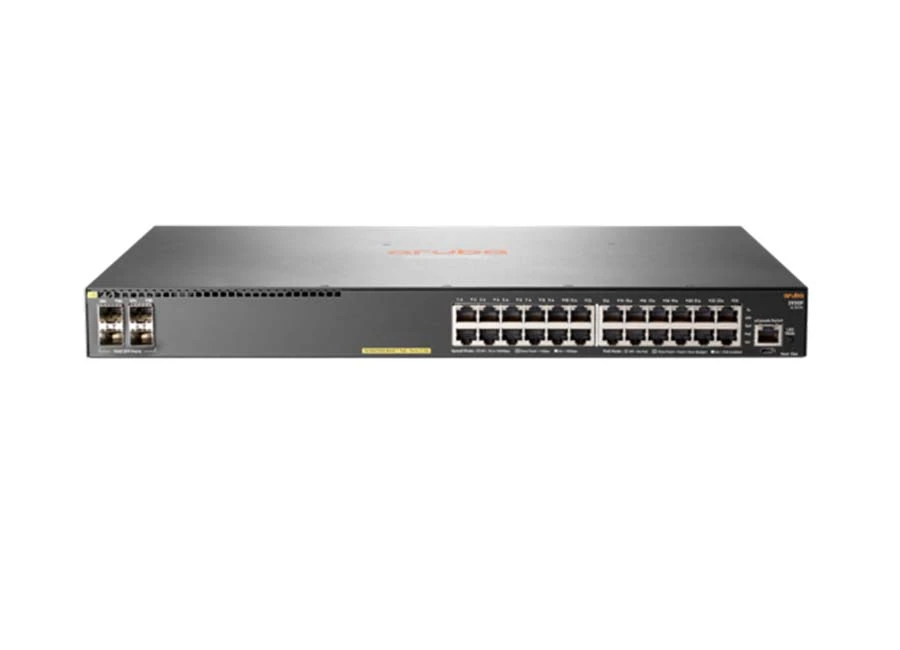

HPE Aruba 2930F 24G JL255A PoE Switch
Özellikler
Teknik Özellikler
| Product Differentiator (long) |
| Popular Aruba 28-port Gig + 10G access switch with 370 Watts PoE+ power. This model has 24x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts. |
| Power Consumption Description |
| 445 W (maximum) |
| Heat Dissipation |
| 258 BTU/hr (272.2 kJ/hr) |
| Input Voltage |
| 100 - 127 / 200 - 240 VAC, rated |
| External I/O Ports |
| (24) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less |
| Latency |
| 1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs |
| Switching Capacity |
| 128 Gbps |
| Throughput |
| up to 95.2 Mpps |
| Memory and Processor |
| Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress 4 GB eMMC |
| PoE Capability |
| 370 W PoE+ |
| Management Features |
| Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Warranty Standard Statement |
| Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase. |
| Weight (imperial) |
| 8.6 lb |
| Weight (metric) |
| 3.9 kg |
| Product Dimensions (imperial) |
| 1.73 x 17.42 x 11.98 in |
| Product Dimensions (metric) |
| 4.39 x 44.25 x 30.42 cm |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
