Açıklama

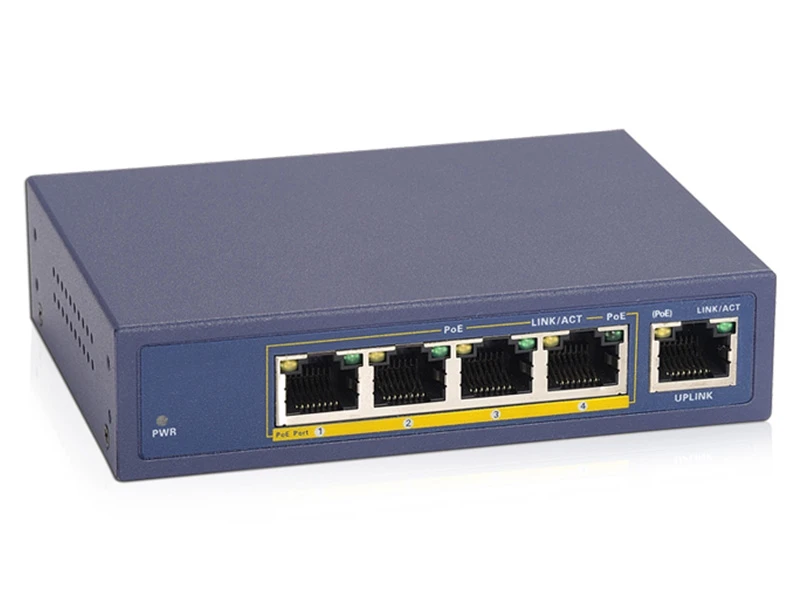

Dynacom DS5004P PoE Switch
Özellikler
- 4 Port IEEE802.3i 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3x akış kontrolü
- 15.4W port başına güç (IEEE802.3af)
- AC90-260V güç girişi
- 15.4W / port PoE güç
- Toplam 72 W güç
- LED gösterge desteği
Teknik Özellikler
| Technology |
| Network Standards |
| IEEE802.3i l0BASE-T |
| IEEE802.3u l00BASE-TX |
| IEEE802.3x Flow Control |
| PoE power |
| 15.4W per port(IEEE802.3af) |
| Wiring: Data & power provided over pairs l/2 and 3/6 or 4/5(+) and 7/8 |
| Cable:UPT cat.5 or higher |
| Processing types |
| Store-and-forward |
| Half-duplex back pressure and IEEE |
| 802.3x full- duplex flow control |
| Buffer memory |
| 48Kb embedded memory per unit |
| Network latency |
| Less than 20us for 64-byte frames in Store-and- forward mode |
| Power Input |
| 52VDC |
| PoE power consumption |
| 15.4W /port |
| Mechanical |
| Casing |
| Metal case |
| Dimension |
| 117 x 85 x 28mm(LxWxH) |
| Weight |
| 0.63KG |
| Installation |
| Rack mounting |
| Interfaces |
| LED Indicators |
| System:Power,PoE Maximum power |
| Per port: Link Activity Speed |
| PoE active,PoE error |
| Environment specifications |
| Operating Temperature |
| 0-55°C (32-104°C) |
| Storage Temperature |
| -10-70°C (14-158°C) |
| Operating Humidity |
| 90% max relative humidity on-condensing |
| Storage Humidity |
| 90% max relative humidity on-condensing |
| Safety |
| CE/ROHs/FCC |
| Warranty |
| 2 year |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
Montaj Tipi : Rack Mount
Aktarım Türü : Rj45
Aktarım Port Sayısı : 1
