Açıklama

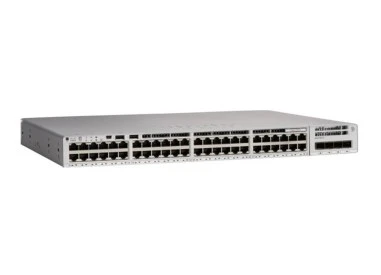

Cisco Catalyst C9200-48PL-E PoE Switch
Özellikler
- Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
- Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
- Flexible downlink options with data, PoE+ or mGig
- Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
- Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- Advanced network monitoring using Full Flexible NetFlow
Teknik Özellikler
| Product Name | Catalyst 9200 48-Port Partial PoE+ Netware |
| Manufacturer Part Number | C9200-48PL-E |
| Product Type | Layer 3 Switch |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Number of Total Expansion Slots | 1 |
| Product Family | Catalyst 9200 |
| Stack Port | Yes |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Total Number of Network Ports | 48 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | Uplink Module |
| Plug / Connector Type | IEC 60320 C16 |
| IEC 60320 C14 | |
| C15 | |
| Form Factor | Rack-mountable |
| Power Consumption | 600 W |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Modular | Yes |
| Uplink Port | Yes |
| Port / Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| 1 x Expansion Slot | |
| PoE Budget | 370 W |
| Height | 1.7" |
| Width | 17.5" |
| Depth | 13.8" |
| Product Series | 9200 |
| Product Model | C9200-48PL |
| Network Technology | 1000Base-T |
| 10GBase-X | |
| Product Line | Catalyst |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Limited Warranty | Lifetime |
| Frequency | 50 Hz |
| 60 Hz | |
| Stock Details | |
| Manufacturer | Cisco Systems |
| Manuf Part# | C9200-48PL-E |
| Price | $2074.84 |
| Availability | Special Order |
Teknik Kısa
PoE : PoE Plus
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 200-400 Watt
