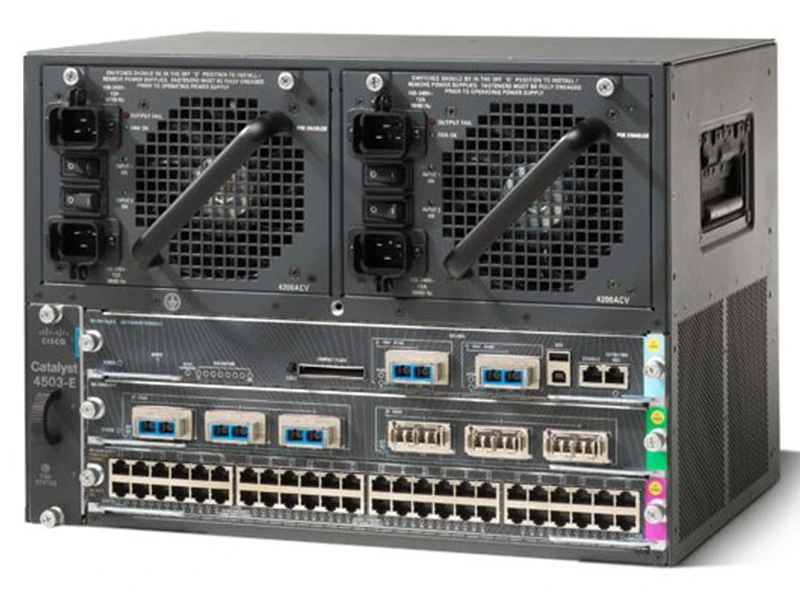

Cisco Catalyst 4503 E PoE Switch
Teknik Özellikler
| Universal PoE (UPOE): Yes |
| 10 GE Fiber port density (including uplink): 28 |
| PoE Plus (PoEP): Yes |
| Operating Temperature : 32 to 104 F (0 to 40 C) |
| 1+1 Power Supply Protection: Yes |
| MTBF: 1,064,279 hours |
| Integrated Power over Ethernet (PoE): Yes |
| Relative Humidity: 10 to 90% (non-condensing) |
| 23-inch Rack Mount: Front (option) |
| Fan Tray Bays: 1 |
| Weight: 32.25 lb (14.63 kg) |
| Enhanced Power Over Ethernet (ePoE) Support: Up to 20W of PoE. 37 ports can be enabled |
| Minimum Number of Power Supplies: 1 |
| Maximum PoE per Slot: 1500 W |
| 19-inch Rack Mount: Front |
| AC Internal: 6000W |
| Operating Altitude: -60 to 3000 meters |
| Line Card Support: E-Series (requires E-Series chassis) and classic |
| Power Supply Bays : 2 |
| Supervisor Engine Redundancy: No |
| Universal Power Over Ethernet: Up to 60W of UPOE |
| Hot-Swappable Power: Yes |
| Line Card Slots: 2 |
| Storage Temperature: -40 to 167 F (-40 to 75 C) |
| AC External: 1400 + power shelf = 7500 |
| Supervisor Engine Slot Number: 1 |
| Power Over Ethernet Plus : Up to 30W - 25 ports can be enabled @ 30W (after software upgrade on premium linecard) |
| Slots: 3 |
| Supervisor Engines Supported: Supervisor Engines 8-E, 7-E, 7L-E, 6-E, and 6L-E |
| DC Internal: 1400 + UPS = 7500 |
| Dimensions (H x W x D): 12.25 x 17.31 x 12.50 in. (31.12 x 43.97 x 31.70 cm) |
| Line Card Slot Speed: 48 Gbps, 24 Gbps, and 6 Gbps |
| Rack Units: 7 |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 800 Watt >
