Açıklama

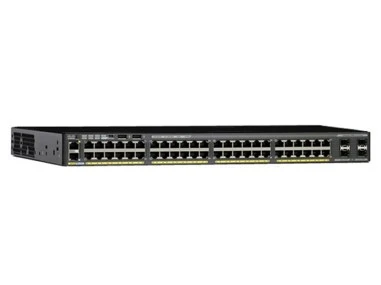

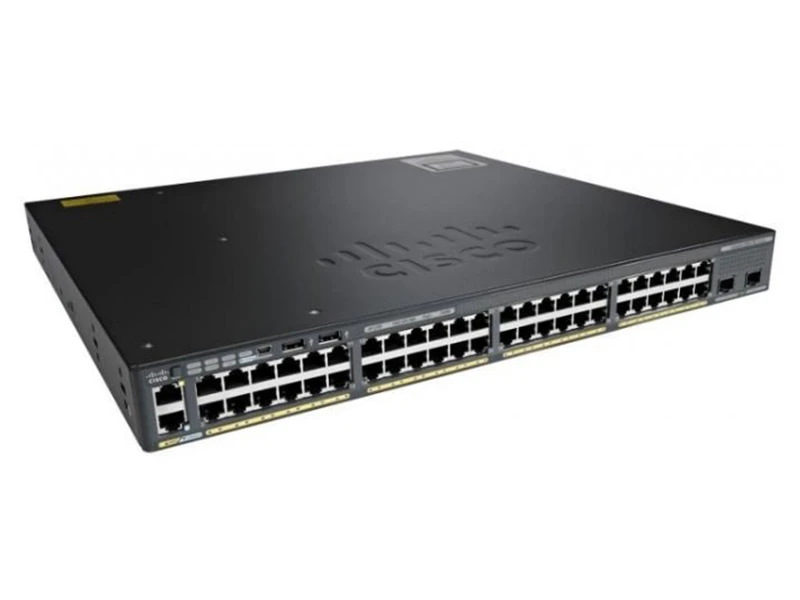

Cisco WS C2960XR 48LPD I 10/100/1000 PoE Switch
Teknik Özellikler
| Product Description |
| Cisco Catalyst 2960XR-48LPD-I - switch - 48 ports - Managed - desktop, rack-mountable |
| Device Type |
| Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type |
| Desktop, rack-mountable 1U |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 48 x 10/100/1000 (PoE+) + 2 x SFP+ |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 370 W |
| Performance |
| Switching capacity : 216 Gbps ¦ Forwarding performance : 130.9 Mpps |
| Capacity |
| Virtual interfaces (VLANs) : 1023 |
| Jumbo Frame Support |
| 9216 bytes |
| Routing Protocol |
| OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol |
| SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Features |
| Layer 2 switching, power over Ethernet (PoE), auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), Cisco FlexStack Plus |
| Compliant Standards |
| IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Power |
| AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy |
| Optional |
| Dimensions (WxDxH) |
| 44.5 cm x 40.8 cm x 4.45 cm |
| Weight |
| 6.4 kg |
| Manufacturer Warranty |
| Limited lifetime warranty |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 200-400 Watt
