Açıklama

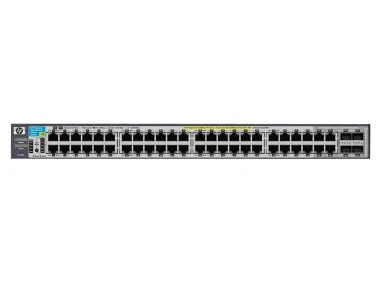

HP 3500yl 48G PWR J8693A 10/100/1000 PoE Switch
Teknik Özellikler
| Format & Standards |
| Format |
| Rackmount |
| Standards |
| IEEE 802.1w Rapid Convergence Spanning Tree |
| IEEE 802.3ad Link Aggregation Control Protocol |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.1Q GVRP |
| IEEE 802.3x Flow Control |
| IEEE 802.1D Spanning Tree |
| IEEE 802.1s Multiple Spanning Trees |
| IEEE 802.1AB Link Layer Discovery Protocol |
| IEEE 802.1X Network Login |
| IEEE 802.1Q VLAN tagging |
| IEEE 802.1p Priority |
| Network Management Type |
| Managed |
| Ports & Interface |
| Uplink Interface |
| SFP |
| Primary Ports |
| 1 open module slots |
| 44 RJ-45 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-T, IEEE 802.3ab Type 1000Base-T) |
| Supports a maximum of 4 10-GbE ports |
| 1 RS-232C DB-9 console port |
| 4 Dual Personality Ports each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers) |
| Primary Port Speed |
| 10/100/1000Mbps |
| Data Transmission |
| VLAN Support |
| Yes |
| Jumbo Frames |
| Yes |
| Uplink Speed |
| SFP |
| Details |
| Buffer Memory |
| 36 Mb QDR SDRAM Packet buffer size |
| Protocols |
| RFC 783 TFTP |
| RFC 1542 BootP |
| RFC 768 UDP |
| RFC 793 TCP |
| RFC 2030 Simple Network Time Protocol |
| DHCP Relay |
| RFC 2453 RIPv2 |
| IGMPv3 |
| ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED) |
| RFC 2597 DiffServ Expedited Forwarding (EF) |
| RFC 1492 TACACS+ |
| RFC 2866 RADIUS accounting |
| Secure Sockets Layer (SSL) |
| SNMPv1/v2c/v3 |
| RFC 1493 Bridge MIB |
| PIM Sparse Mode (Premium Edge License) |
| RFC 2096 IP Forwarding Table MIB |
| RFC 2863 Evolution of Interface |
| RFC 3768 VRRP (Premium Edge License) |
| RFC 1058 RIP |
| RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) |
| RFC 2021 RMON probe configuration (RMON v2) |
| RFC 2613 SMON |
| RFC 1850 OSPF MIB |
| RFC 2620 RADIUS Accounting MIB |
| RFC 3176 sFlow |
| RFC 951 BootP |
| RFC 854 Telnet |
| RFC 792 ICMP |
| RFC 826 ARP |
| RFC 3376 IGMPv1/v2/v3 |
| RFC 2328 OSPFv2 (Premium Edge License) |
| RFC 2474 DiffServ Precedence |
| RFC 2598 DiffServ Assured Forwarding (AF) |
| RFC 2138 RADIUS |
| SSHv1/SSHv2 Secure Shell |
| HTML and telnet management |
| PIM Dense Mode (Premium Edge License) |
| RFC 1213 MIB II |
| RFC 2737 Entity MIB |
| RFC 2665 Ethernet MIB |
| RFC 2787 VRRP MIB |
| RFC 1724 RIPv2 MIB |
| XRMON |
| RFC 2668 802.3 MAU MIB |
| RFC 2674 802.1p and IEEE 802.1Q Bridge MIB |
| RFC 2618 RADIUS Client MIB |
| RFC 3046 DHCP Relay Agent Information Option |
| Security |
| Switch CPU protection |
| Virus throttling |
| ICMP throttling |
| Multiple user authentication methods |
| Authentication flexibility |
| Access control lists (ACLs) |
| Identity-driven ACL |
| Port security |
| MAC address lockout |
| Source-port filtering |
| TACACS+ |
| Secure Shell (SSHv2) |
| Secure Sockets Layer (SSL) |
| Secure FTP |
| Secure management access |
| Switch management logon security |
| Security banner |
| PoE |
| Yes |
| Stackable |
| Yes |
| SNMP |
| Yes |
| QoS |
| Yes |
| LACP |
| Yes |
| Layer |
| 4 |
| Port Mirroring |
| Yes |
| Module Support |
| Yes |
| Features |
| Features |
| Performance |
| 1000 MB: < 3.7 µs (FIFO 64-byte packets) |
| 10 Gb: < 2.1 µs (FIFO 64-byte packets) |
| Throughput: up to 110 million pps (64-byte packets) |
| Routing/switching capacity: 148 Gbps |
| Switch fabric speed: 173 Gbps |
| Routing table size: 10000 entries |
| Resiliency and high availability |
| Layer 2 switching |
| Layer 3 routing |
| Layer 3 services: UDP helper function |
| Access control lists (ACLs) |
| Identity-driven ACL |
| MAC address lockout |
| Source-port filtering |
| Secure Shell (SSHv2) |
| Secure Sockets Layer (SSL) |
| Secure FTP |
| Secure management access |
| Switch management logon security |
| Security banner |
| IP multicast routing (Premium Edge license) |
| IP multicast snooping (data-driven IGMP) |
| LLDP-MED (Media Endpoint Discovery) |
| iSCSI support |
| Quality of Service (QoS) |
| Management: RMON, XRMON and sFlow v5;Link Layer Discovery Protocol (802.1ab); Friendly port names; Dual flash images; Multiple configuration files; Port mirroring |
| Dimensions & Weight |
| Dimensions |
| 17.4" x 16.9" x 1.7" |
| Weight |
| 16.1 lbs. |
| Environmental |
| Temperature |
| ° to 55° C (32° to 131° F) |
| Humidity |
| 15 % to 95 % at 104 °F (40 °C), noncondensing |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 4
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
44 Port
44 Port
