1000 PoE Switch

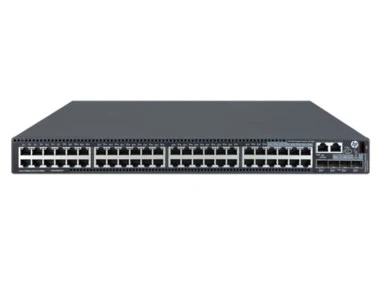

Name: HP 5500 48G PoE Plus 4SFP HI JG542A 10/100/1000 PoE Switch
Brand: HP

Teknik Özellikler

Capacity

Type: IPv4 routing table entries

Value: 12000

Type: IPv6 routing table entries

Value: 6000

Chassis

Installed Devices Modules Qty:

Supported Devices Modules Qty: 2

Dimensions & Weight

Depth: 18.1 in

Height: 1.7 in

Weight: 23.15 lbs

Width: 17.3 in

Environmental Parameters

Humidity Range Operating: 5 - 95% (non-condensing)

Humidity Range Storage: 5 - 95% (non-condensing)

Max Operating Temperature: 113 °F

Max Storage Temperature: 158 °F

Min Operating Temperature: 32 °F

Min Storage Temperature: -40 °F

Flash Memory

Installed Size: 512 MB

Header

Brand: HPE

Compatibility: PC

Manufacturer: ProCurve Networking

Model: 5500-48G-PoE+-4SFP HI Switch with 2 Interface Slots

Packaged Quantity: 1

Product Line: HPE

Interface Provided

Comments: PoE+

Connector Type: RJ-45

Qty: 48

Type: 1000Base-T

Connector Type: SFP

Connector Type: SFP (mini-GBIC)

Interface: Ethernet 1000

Qty: 4

Connector Type: SFP+

Interface: 10Gb Ethernet

Qty: 2

Comments: Management

Qty: 1

Type: Console

Connector Type: RJ-45

Miscellaneous

Authentication Method: HWTACACS , RADIUS , Secure Shell (SSH) , Secure Shell v.2 (SSH2)

Compliant Standards: AS/NZS 60950-1 , CAN/CSA C22.2 No. 60950-1 , CISPR 22 Class A , CISPR 24 , EN 60825-1 , EN 60825-2 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN300-386 , EN55022 Class A , EN55024 , ETSI , FCC CFR47 Part 15 , FCC Class A certified , GB 4943 , ICES-003 Class A , IEC 60950-1 , RoHS , UL 60950-1 , VCCI V-3 Class A ITE

Height (Rack Units): 1

Rack Mounting Kit: Included

Networking

Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1ad , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3ae , IEEE 802.3at , IEEE 802.3i , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z

Features: Access Control List (ACL) support , ARP support , Auto-uplink (auto MDI/MDI-X) , Bidirectional Forwarding Detection (BFD) , Committed Access Rate (CAR) , Device Link Detection Protocol (DLDP) support , DHCP support , Dual firmware images , Endpoint Admission Defense (EAD) , Equal-Cost Multipath (ECMP) , Generic Attribute Registration Protocol (GARP) , Intelligent Resilient Framework Technology (IRF) , IPv4 support , IPv6 support , Layer 2 switching , LLDP support , MLD snooping , MPLS support , Multicast Border Gateway Protocol (MBGP) , Multicast Source Discovery Protocol (MSDP) , Multiple Spanning Tree Protocol (MSTP) support , Packet storm protection , Port isolation , Quality of Service (QoS) , Rapid Ring Protection Protocol (RRPP) support , Rapid Spanning Tree Protocol (RSTP) support , sFlow , Spanning Tree Protocol (STP) support , STP Root Guard , Unicast Reverse Path Forwarding (URPF) , Virtual Yol Tarifi Göster Redundancy Protocol (VRRP) support , VLAN support

Form Factor: Rack-mountable

Jumbo Frame Support: Yes

MAC Address Table Size: 32K entries

Manageable: Yes

PoE Budget: 1440 W

Ports Qty: 48

Power Over Ethernet (PoE): PoE+

Remote Management Protocol: CLI , HTTPS , RMON , SNMP 1 , SNMP 2c , SNMP 3 , SSH-2 , Telnet

Routing Protocol: BGP , BGP-4+ , Bidirectional Forwarding Detection (BFD) , ECMP , IGMP , IGMPv2 , IGMPv3 , IS-IS , IS-ISv6 , MLD , MLDv2 , MPLS , OSPF , OSPFv3 , PIM-DM , PIM-SM , PIM-SSM , RIP , RIPng , Static IP routing , VRRP

Stackable: Stackable

Subcategory: Network hubs and switches

Subtype: Gigabit Ethernet

Type: Switch

Performance

Type: Routing/switching capacity

Value: 224 Gbps

Type: Throughput

Value: Up to 166.6 Mpps

Ports

Qty: 48

Type: 10/100/1000 (PoE+)
