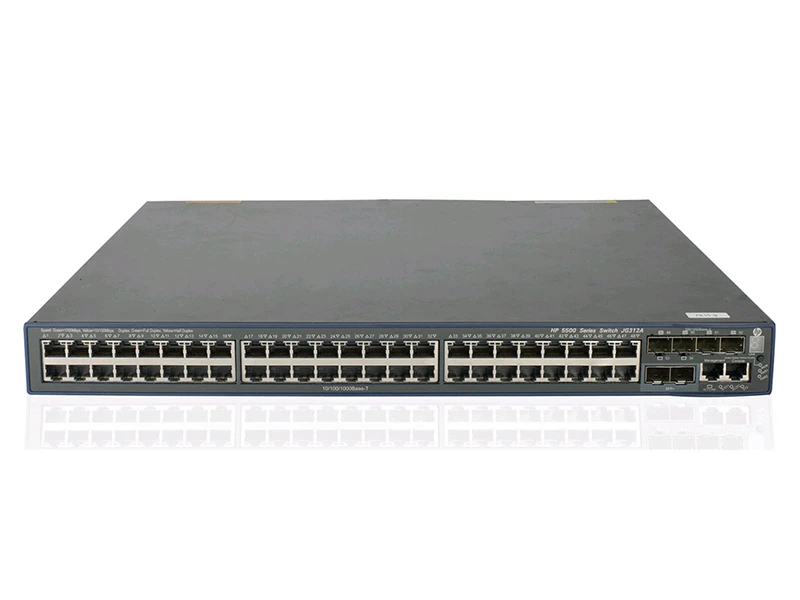

HP 5500 48G PoE Plus EI JG240A 10/100/1000 PoE Switch

Teknik Özellikler

Capacity
Type: Routing table entries
Value: 12000
Chassis
Installed Devices Modules Qty:
Supported Devices Modules Qty: 2
Dimensions & Weight
Depth: 16.5 in
Height: 1.7 in
Weight: 14.33 lbs
Width: 17.3 in
Environmental Parameters
Humidity Range Operating: 10 - 90% (non-condensing)
Humidity Range Storage: 5 - 95% (non-condensing)
Max Operating Temperature: 113 °F
Max Storage Temperature: 158 °F
Min Operating Temperature: 32 °F
Min Storage Temperature: -40 °F
Flash Memory
Installed Size: 32 MB
Header
Brand: HPE
Compatibility: PC
Country Kits: United States
Localization: English
Manufacturer: ProCurve Networking
Model: 5500-48G-PoE+ EI Switch with 2 Interface Slots
Packaged Quantity: 1
Product Line: HPE
Interface Provided
Comments: PoE
Connector Type: RJ-45
Qty: 48
Type: 1000Base-T
Comments: Management
Qty: 1
Type: Console
Connector Type: SFP (mini-GBIC)
Qty: 4
Miscellaneous
Authentication Method: RADIUS , Secure Shell (SSH) , Secure Shell v.2 (SSH2) , TACACS+
Compliant Standards: CISPR 22 Class A , CSA C22.2 No. 60950-1 , EN 60825-1 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN 61000-4-11 , EN 61000-4-2 , EN 61000-4-3 , EN 61000-4-4 , EN 61000-4-5 , EN 61000-4-6 , EN55022 Class A , FCC Part 15 A , ICES-003 Class A , IEC 60950-1 , RoHS , UL 60950-1 , WEEE
Encryption Algorithm: SSL
Height (Rack Units): 1
Rack Mounting Kit: Included
Networking
Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1ad , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3i , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z
Features: Access Control List (ACL) support , ARP support , Auto-uplink (auto MDI/MDI-X) , BOOTP support , Committed Access Rate (CAR) , Device Link Detection Protocol (DLDP) support , DHCP support , DiffServ support , Endpoint Admission Defense (EAD) , Equal-Cost Multipath (ECMP) , Flow control , IGMP snooping , IPv6 support , Jumbo Frames support , Layer 2 switching , Layer 3 switching , MLD snooping , Multiple Spanning Tree Protocol (MSTP) support , PoE+ , Power over Ethernet (PoE) , Quality of Service (QoS) , Rapid Spanning Tree Protocol (RSTP) support , Routing , sFlow , Spanning Tree Protocol (STP) support , STP Root Guard , Unicast Reverse Path Forwarding (URPF) , Virtual Yol Tarifi Göster Redundancy Protocol (VRRP) support , VLAN support
Form Factor: Rack-mountable
Jumbo Frame Support: Yes
MAC Address Table Size: 32K entries
Manageable: Yes
Ports Qty: 48
Power Over Ethernet (PoE): PoE
Remote Management Protocol: CLI , HTTP , HTTPS , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , Telnet
Routing Protocol: BGP-4 , ECMP , IGMP , IGMPv2 , IGMPv3 , IS-IS , MLD , MLDv2 , MSDP , OSPF , OSPFv2 , OSPFv3 , PIM-DM , PIM-SM , PIM-SSM , RIP-1 , RIP-2 , RIPng , Static IPv4 routing , Static IPv6 routing , VRRP
Stackable: Stackable
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Performance
Type: Routing/switching capacity
Value: 192 Gbps
Type: Throughput
Value: 142.9 Mpps
Ports
Qty: 48
Type: 10/100/1000 (PoE)
Ports (2nd)
Qty: 4
Type: Shared SFP
Power Device
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Type: Internal power supply
RAM
Installed Size: 256 MB
Technology: SDRAM
Service
Support Details Full Contract Period: Lifetime
Support Details Service Included: Advance parts replacement
Support Details Type: Limited warranty
Service & Support
Type: Limited lifetime warranty
Slot Provided
Free Qty: 2
Total Qty: 2
Type: Expansion slot



Teknik Kısa

PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : Tooltip 48 Port
Montaj Tipi : Rack Mount
