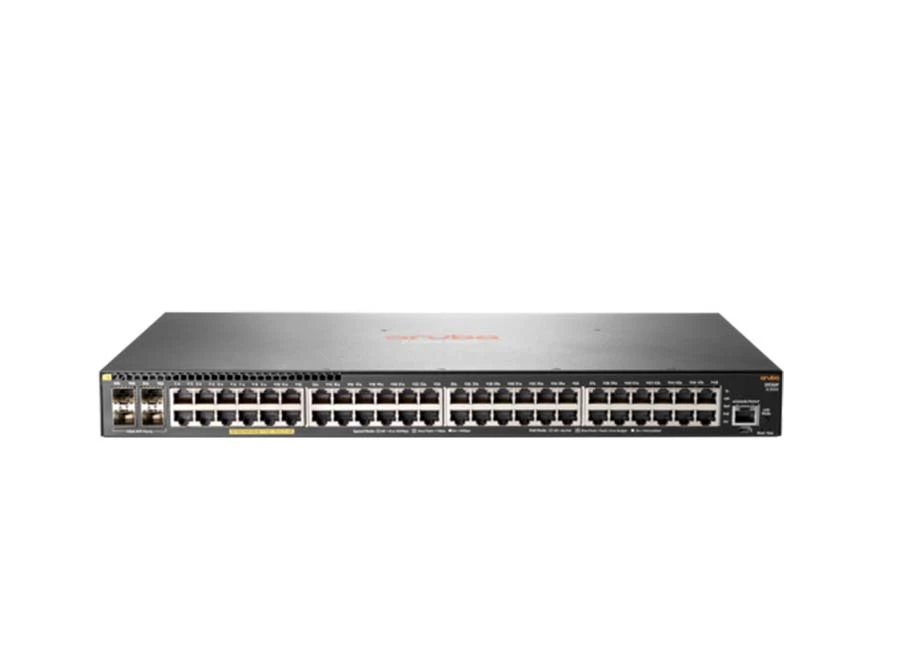

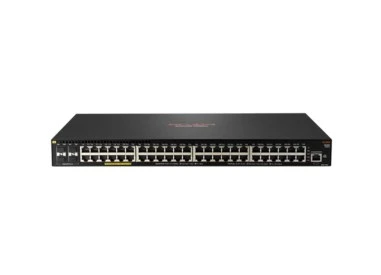

HPE Aruba 2930F 48G JL262A PoE Switch

Özellikler

Aruba 2930F 48G PoE+ 4SFP Switch JL262A
48 RJ-45 PoE+ autosensing 10/100/1000 ports
4 SFP 1G ports
min=0 \\ max=4 SFP Transceivers
1U - Height

Teknik Özellikler

Product Differentiator (long)

Popular Aruba 52-port Gig access switch with high-power 740 Watts PoE+ power. This model has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740 Watts.

Power Consumption Description

980 W (maximum)

Heat Dissipation

420.9 BTU/hr (444.1 kJ/hr)

Input Voltage

100-127 / 200-240 VAC, rated

External I/O Ports

(48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP

Latency

1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs

Switching Capacity

176 Gbps

Throughput

up to 112 Mpps

Memory and Processor

Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC

PoE Capability

740 W PoE+

Management Features

Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)

Warranty Features

Lifetime: Advance hardware replacement for as long as you own the product with next-business-day delivery (available in most countries). Limited 24x7 telephone support is available from HPE for the first 3 years limited electronic and business hours telephone support is available from HPE for the entire warranty period to reach our support centers, refer to https://h10145.www1.hpe.com/support/TechnicalSupport.aspx for details on the duration of support provided with your product purchase, refer to http://h17007.www1.hpe.com/us/en/networking/support/warranty/index.aspx#!&tab=TABCurrent

Warranty Standard Statement

Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.

Weight (imperial)

10.56 lb

Weight (metric)

4.79 kg

Product Dimensions (imperial)

1.73 x 17.42 x 12.77 in

Product Dimensions (metric)

4.39 x 44.25 x 32.42 cm

HPE Aruba 2930F 48G JL262A PoE Switch Pdf Dosyası610.18 KB
