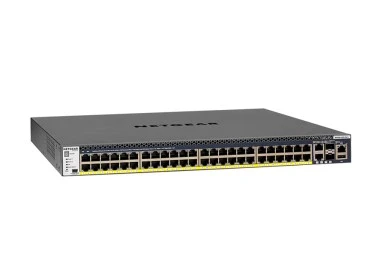

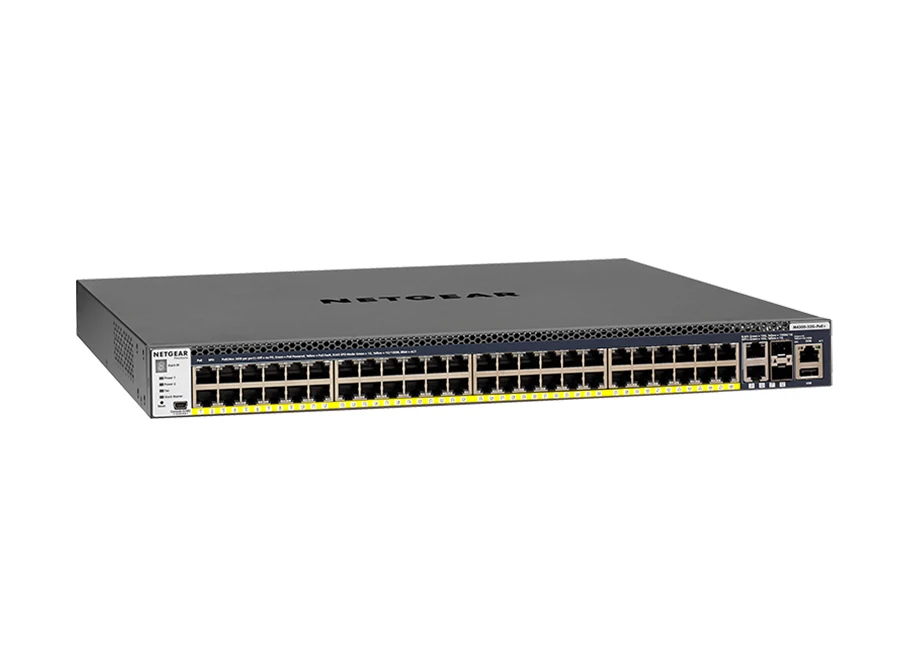

Netgear M4300 52G PoE Plus 550W PSU Switch
Teknik Özellikler
| Model Description |
| 48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU) |
| Ordering Number |
| GSM4352PA |
| Acoustics |
| 39.8dB @ 25°C (77°F) |
| Power Consumption (Max) |
| 865 Watts |
| 1G RJ45 Ports |
| 48 x 10/100/1000 |
| 10G RJ45 Ports |
| 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds) |
| 10G Fiber SFP+ Ports |
| 2 x SFP+ (1G and 10G speeds) |
| Power over Ethernet |
| 48 x PoE+ 30W |
| PoE Budget (Watts) |
| 480W PoE Budget with 1 PSU @ 110V / 220V AC input |
| 480W PoE Budget with 2 PSUs in redundant RPS mode @ 110V / 220V AC input |
| 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V / 220V AC input |
| External RPS4000v2 for power redundancy (RPS) when 2 internal PSUs are used in EPS mode |
| Feature Set |
| Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing) |
| Management Ports |
| 1G Ethernet service port for out-of-band management (OOB, RJ45) |
| RS232 straight-through serial RJ45 for local management console |
| Mini-USB port for local management console |
| USB port for local storage, logs, configuration or image files |
| Form Factor |
| Full width with dual, redundant modular PSUs for business continuity |
Netgear M4300 52G PoE Plus 550W PSU Switch Pdf Dosyası8.38 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
48 Port
48 Port PoE Güç Bütçesi : 400-800 Watt
