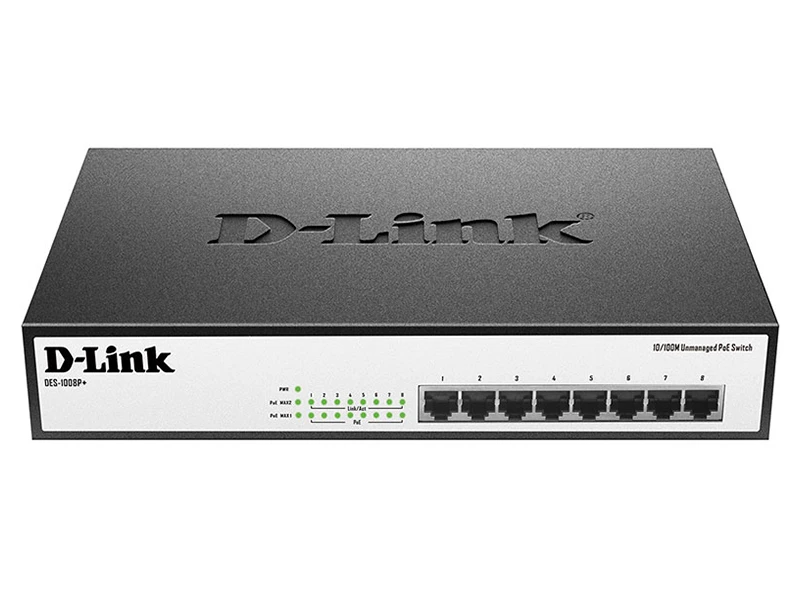

D-Link DES 1008P Plus A1A 10/100 PoE Switch
Teknik Özellikler
| Fiziksel Özellikler |
| Technical Specifications |
| General |
| Standards |
| IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) |
| ANSI/IEEE 802.3 NWay auto-negotiation |
| IEEE 802.3x flow control |
| IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) |
| Ports 8 10/100 Mbps PoE ports |
| Switching Fabric |
| 1.6 Gbps switching fabric |
| Data Transfer Rates |
| Ethernet |
| 10 Mbps (half duplex) |
| 20 Mbps (full duplex) |
| Fast Ethernet |
| 100 Mbps (half duplex) |
| 200 Mbps (full duplex) |
| Media Interface Exchange |
| Auto MDI/MDIX adjustment for all ports |
| Network Cables |
| 10BASE-T |
| UTP CAT 3/4/5/5e (100 m max.) |
| EIA/TIA-586 100-ohm STP (100 m max.) |
| 100BASE-TX |
| UTP CAT 5/5e (100 m max.) |
| EIA/TIA-568 100-ohm STP (100 m max.) |
| LED Indicators |
| Per port: |
| Link/Activity |
| PoE Status |
| Per device: |
| Power |
| PoE Max 1 |
| PoE Max 2 |
| Transmission Method : Store-and-forward |
| MAC Address Table : 2K entries per device |
| Packet Filtering/Forwarding Rates : Ethernet: 14,880 pps per port |
| Fast Ethernet: 148,800 pps per port |
| RAM Buffer : 96 KB per device |
| Physical & Environmental |
| Dimensions : 11.02” x 7.05” x 1.75” (280mm x 179mm x 44.5mm) |
| Heat Dissipation |
| Standby: 22.67 BTU/h |
| Maximum: 486.7 BTU/h |
| Power Input : 100 to 240 VAC, 50/60 Hz, Internal Universal Power Supply |
| Power Consumption |
| Standby: 6.9W |
| Maximum:146W |
| Weight : 3.6 lbs (1.65 Kg) |
| Temperature |
| Operating: 32 to 104˚ F (0 to 40˚ C) |
| Storage: -40 to 158˚ F (-40 to 70˚ C) |
| Humidity |
| Operating: 5% to 95% RH non-condensing |
| Storage: 5% to 95% RH non-condensing |
| Certifications : FCC Class B,CE,RoHS,cUL |
| Power over Ethernet |
| PoE capable ports : Ports 1 - 8 |
| PoE standard : IEEE 802.3af and IEEE 802.3at |
| PoE power budget : 140W total |
| Ports 1-4: 70W |
| Ports 5-8: 70W |
| Warranty Information |
| Warranty : Limited Lifetime |
D-Link DES 1008P Plus A1A 10/100 PoE Switch PDF Dosyası681.31 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Montaj Tipi : Rack Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
