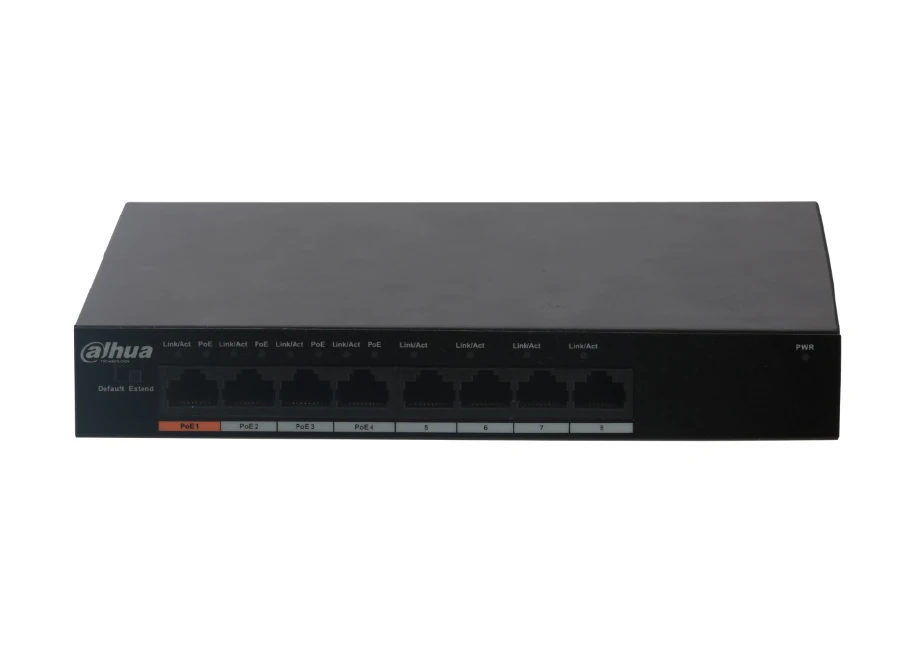

Dahua PFS3008 8GT 60 PoE Switch
Özellikler
- Layer two commercial switch
- Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
- MAC auto learning, aging, MAC address capacity is 8K
- Supports MDI/MDIX self-adaptation
- RJ45 port supports 10/100/1000 Mbps self-adaptation
- Supports IEEE802.3af and IEEE803.3at power supply standards
- Adopts metal enclosure
- Supports Hi-PoE 60W
- Supports DC 48-57V power supply
Teknik Özellikler
| Technical Specification | |
| Model | PFS3008-8GT-60 |
| Ethernet Port | 4*10/100/1000Mbps PoE ports |
| 4*10/100/1000Mbps ports | |
| PoE Power Consumption | Port1≤60W, Port2-4≤30W, Total≤60W |
| PoE Protocol | IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| Packet Buffer Memory | 1.5Mb |
| MAC Table Size | 8K |
| Flow Control | Enable by default |
| Application Humidity | 10%~90% |
| Power | DC48~57V power adapter |
| Lightning Protection | Common Mode 2KV |
| Differential Mode 0.5KV | |
| Working Temperature | -10°C~+55°C |
| Weight | 0.49kg |
| Dimension(W×D×H) | 190mm×100mm×30mm |
Teknik Kısa
PoE :
PoE
Port Hızı :
1 GBit
Yönetilebilirlik :
Yönetilebilir Layer 2
PoE Güç Bütçesi :
50-130 Watt
PoE :
Hibrid
PoE Port Sayısı :
4 Port
4 Port
