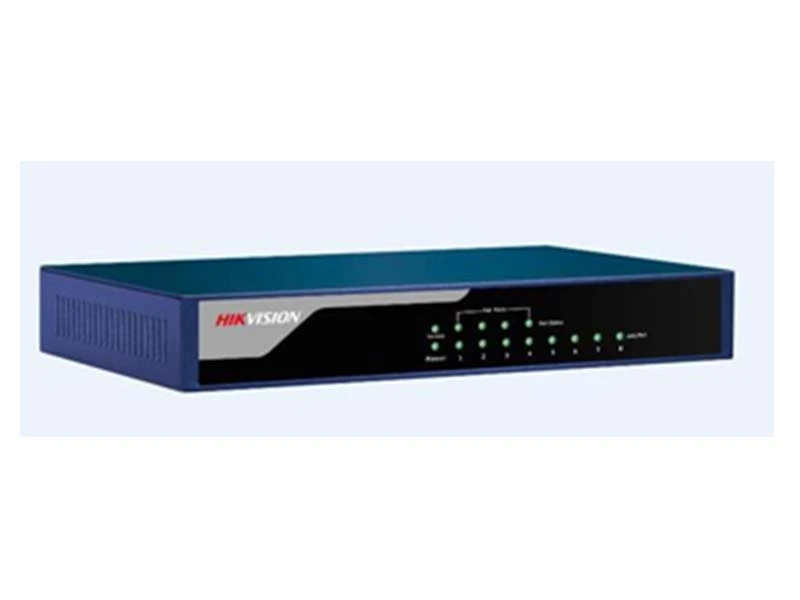

Hikvision DS 3E0108P E PoE Switch

Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, and IEEE 802.3at standard
8 auto-negotiation RJ45 ports
Auto MDI/MDIX
Ports 1 - 4 of the switch support IEEE802.3at/af standard
1.6 Gbps backplane bandwidth and 1.19 Mbps packet forwarding rate for non-blocking line-speed forwarding
Up to 30W PoE power for each PoE port
Automatically adjust the power supply powered devices
Durable case and silent, fan-less design, longer service life

PoE : PoE

Port Hızı : 100 Mbps

Yönetilebilirlik : Yönetilemez

PoE Port Sayısı : Tooltip

4 Port

PoE Güç Bütçesi : 50-130 Watt

Ports
10/100M RJ45	8
Performance
Switching Capacity	1.6 Gbps
Store-and-forward	Supported
MAC address table	1 k
MAC address learning:	Auto-learning/ Auto-aging
Power Over Ethernet
PoE Standard	IEEE 802.3af, IEEE802.3at
PoE cable core	Two pair of wires: pins 1 and 2, and pins 3 and 6
PoE port	1.Nis
Port max. power	30 W
Switch max. power	58 W
General
Power Supply	51 V DC，1.25 A
Power Consumption	≤63w
Working Temperature	Operating Temperature: 0 °C ~ 40 °C
Working Humidity	Operating Humidity: 10% - 90% RH non-condensing
Storage Temperature	Storage Temperature: -40 °C ~ 70 °C
Storage Humidity	Storage Humidity: 5% - 90% RH non-condensing
