Açıklama

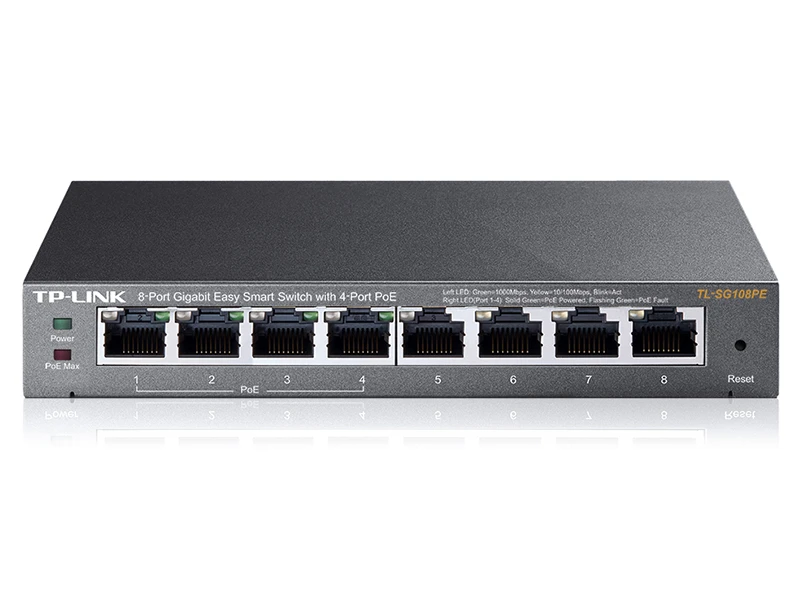

TP-LINK TL SG108PE 10/100/1000 PoE Switch
Özellikler
- 8 10/100/1000Mbps ports provide instant large file transfers
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port
- Supports PoE power up to 55W for all PoE ports
- IEEE 802.3x flow control provides reliable data transfers
- 15KB Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
- Port/802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP Snooping optimizes multicast applications
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
Teknik Özellikler
| Standards and Protocols |
| IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, |
| IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface |
| 8 10/100/1000Mbps RJ45 Ports |
| AUTO Negotiation/AUTO MDI/MDIX |
| Network Media |
| 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity |
| Fanless |
| Power Supply |
| External Power Adapter(Output: 48VDC / 1.25A) |
| Power Consumption |
| Maximum (PoE on): 65.2W (220V/50Hz) |
| Maximum (PoE off): 5.2W (220V/50Hz) |
| PoE+ Ports(RJ45) |
| PoE Ports (RJ45) |
| Standard: 802.3 af compliant |
| PoE Ports: Port 1- Port 4 |
| PoE Power Budget: 55W |
| PERFORMANCE |
| Switching Capacity |
| 16Gbps |
| Packet Forwarding Rate |
| 11.9Mpps |
| MAC Address Table |
| 4K |
| Packet Buffer Memory |
| 1.5Mb |
| Jumbo Frame |
| 15KB |
| Environment |
| Operating Temperature: |
| ℃~40℃ (32℉~104℉) |
| Storage Temperature: |
| -40℃~70℃ (-40℉~158℉) |
| Operating Humidity: |
| 10%~90%RH non-condensing |
| Storage Humidity: |
| 5%~95%RH non-condensing |
Yazılım Özellikleri
| Quality of Service |
| Support Port-Based/802.1p/DSCP priority |
| Support 4 priority queues |
| Rate Limit |
| Storm Control |
| L2 Features |
| IGMP Snooping V1/V2/V3 |
| Link Aggregation |
| Port Mirroring |
| Cable Diagnostics |
| Loop Prevention |
| VLAN |
| Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
| MTU/Port/Tag VLAN |
| Management |
| Web-based GUI |
| Easy Smart Configuration Utility |
| Transmission Method |
| Store-And-Forward |
TP-LINK TL SG108PE 10/100/1000 PoE Switch Pdf Dosyası17.47 MB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 50-130 Watt
