Açıklama

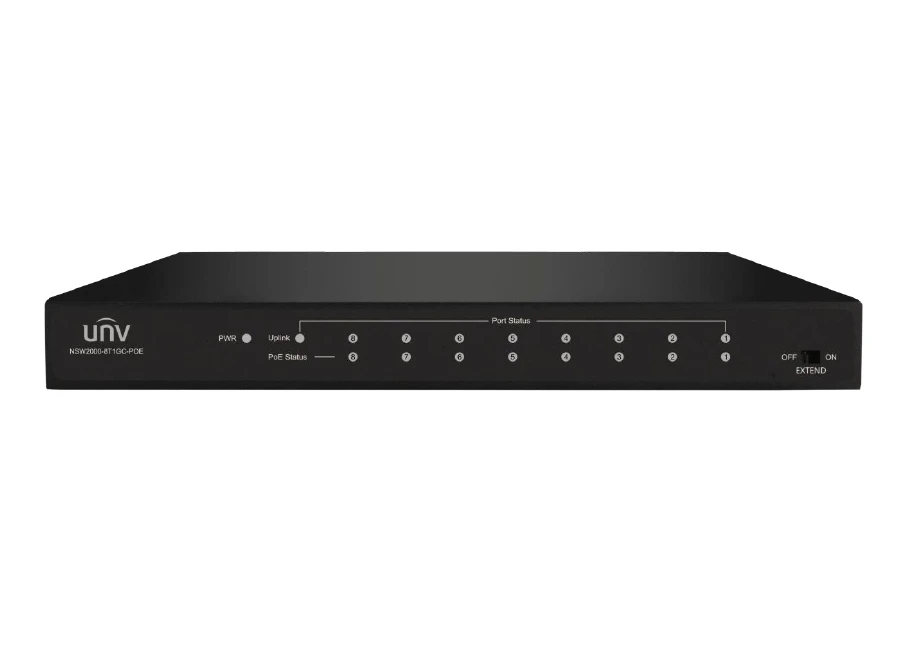

Uniview NSW2000 8T1GC POE Switch
Özellikler
Teknik Özellikler
| Ports | 8×10/100Base-TX autosensing Ethernet ports(all support PoE) |
| 1×Gigabit combo port (RJ45 and SFP) | |
| Port attribute | 10/100/1000Mbit/s transfer rate |
| Half-duplex, full-duplex and auto-negotiation | |
| Auto MDI/MDIX | |
| Standards | IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3z 1000BASE-X | |
| ANSI/IEEE 802.3 NWay | |
| IEEE 802.3x flow control | |
| IEEE 802.3af PoE | |
| IEEE 802.3at PoE | |
| MAC | 4K |
| Packet forwarding rate | 2.68Mpps |
| Switching capacity | 3.6Gbps |
| EXTEND mode | Disabled: all ports can communicate with each other, and monitoring optimization is disabled. |
| Enabled: Downlink ports can only communicate with uplink ports, monitoring optimization is enabled, and transmission distance can be extended to up to 250 meters. | |
| Status LEDs | Link/Act (steady green): link is normal |
| Link/Act (flashing green): data is being forwarded | |
| Link/Act (off): no link | |
| PoE (steady orange): the port is powering a powered device properly | |
| PoE (off): the port is not connected to any powered device or is not supplying power | |
| Power (steady green): AC input is normal | |
| Power (off): AC input is abnormal | |
| PoE | 802.3at/af |
| Max PoE capacity: 115 W | |
| Consumption | ≤ 120 W |
| DC voltage | 54 V , 2.2A |
| Operating temperature | °C-40°C (32°F-104°F) |
| Operating humidity | 10%-85% |
| Storage temperature | -10°C-70°C (14°F-158°F) |
| Storage humidity | 10%-90% |
| Dimensions (W×D×H) | 235mm×110mm×27mm (9.3"×4.3"×1.1") |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Combo
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
Çalışma Mesafesi : 250 Mt.
