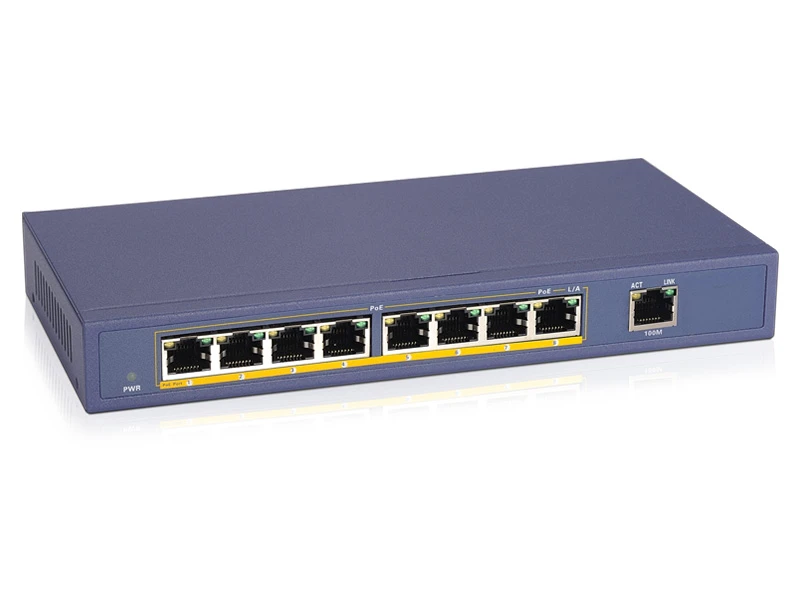

Dynacom DS1009P PoE Switch
Teknik Özellikler
| Technology |
| Network Standards |
| IEEE802.3i lOBASE-T |
| IEEE802.3u lOOBASE-TX |
| IEEE802.3x Flow Control |
| PoE power |
| 15.4W per port(IEEE802.3af);25.5W per port(IEEE802.3at) |
| Wiring: Data & power provided over pairsl/2and 3/6 or 4/5( + )and7/8( - ) |
| Cable:UPT cat.5 or hiaher |
| Processing types |
| Store-and-forward Half-duplex back pressure and IEEE802.3x full- duplex flow control |
| Backplane Bandwidth |
| 1.8Gbps |
| Buffer memory |
| 96Kb embedded memory per unit |
| MAC Address |
| 2K |
| Network latency |
| Less than 20us for 64-byte frames in Store-and- forward mode |
| Power Input |
| AC90-260V input |
| PoE power consumption |
| 15.4W /port |
| Power budqet |
| 145W |
| Mechanical |
| Casing |
| Metal case |
| Dimension |
| 300x215x160mm(LxWxH) |
| Weight |
| 1.2KG |
| LED Indicators |
| System : Power , PoE Maximum power |
| Per port : Link,Activity, Speed PoE active, PoEerror |
| Installation |
| Desktop |
| Environment specifications |
| Operating Temperature |
| -10~45°C |
| Storage Temperature |
| -10~70°C |
| Operating Humidity |
| 90% max relative humidity on-condensing |
| Storaqe Humidity |
| 90% max relative humidity on-condensing |
| Safety |
| CE/ROHs/FCC |
| Warranty |
| 1 year |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 130-200 Watt
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
