Açıklama

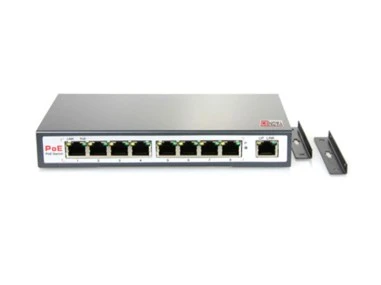

Hikvision DS 3E0109P E/M PoE Switch
Özellikler
- 9*10/100 Base-TX Ethernet ports
- Supports standard and EXTEND network mode
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standards
- Store-and-Forward switching
- 4K MAC address table and MAC address learning
- 1.8 Gbps backplane bandwidth
- All-mental construction
- Desktop and wall-mounted installation
Teknik Özellikler
| Ports | |
| 10/100M RJ45 | 9 |
| Port of high priority | Port 1 - 2 |
| Performance | |
| Switching Capacity | 1.8 Gbps |
| Store-and-forward | Supported |
| MAC address table | 4 k |
| MAC address learning | Auto-learning/ Auto-aging |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3af, IEEE802.3at |
| Working Mode | EXTEND OFF, EXTEND ON |
| PoE cable core | Supports 8-pin power supply |
| PoE port | 1.Ağu |
| Port max. power | 30 W |
| Switch max. power | 58 W |
| General | |
| Power Supply | 51 V DC，1.25 A |
| Power Consumption | ≤63w |
| Working Temperature | Operating Temperature: 0 °C ~ 40 °C |
| Working Humidity | Operating Humidity: 10% - 90% RH non-condensing |
| Storage Temperature | Storage Temperature: -40 °C ~ 70 °C |
| Storage Humidity | Storage Humidity: 5% - 90% RH non-condensing |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 1
Aktarım Türü : Rj45
PoE Port Sayısı :
9 Port
9 Port PoE Güç Bütçesi : 50-130 Watt
