Açıklama

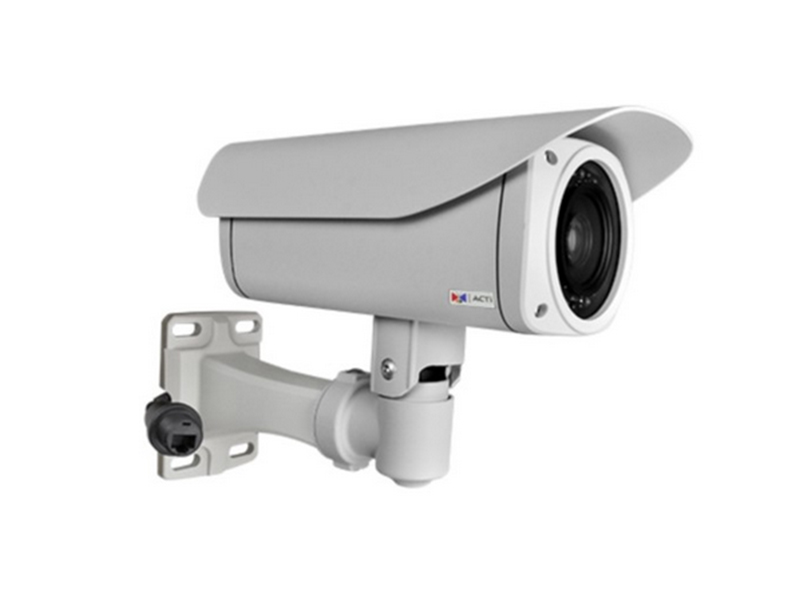

Acti B417 IP HD Bullet Kamera
Teknik Özellikler
| Product Type | Zoom Bullet |
| Maximum Resolution | 3MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Superior Low Light Sensitivity | No |
| Minimum Illumination | Color: 0.1 lux, B/W: 0 lux (IR LED on) at F1.6 |
| Mechanical IR Cut Filter | Yes |
| IR LED | Yes, Adaptive IR (Object & Zoom Adaptive IR) |
| IR Working Distance | 40m |
| Lens | Zoom, f4.7-94mm / F1.6-3.5, DC iris, Auto focus |
| Zoom Ratio | 20x optical |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 60.8°-3.4° |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 2048 x 1536 |
| 30 fps at 1920 x 1080 | |
| 30 fps at 1280 x 720 | |
| 30 fps at 800 x 600 | |
| 30 fps at 640 x 480 | |
| 15 fps at 320 x 240 | |
| Horizontal Resolution (TV lines) | 1450 TVL |
| Multi-Streaming | Dual streams |
| Wide Dynamic Range | Superior WDR (110 dB) |
| Digital Noise Reduction | DNR |
| S/N Ratio | 52 dB |
| Audio | 2-way (Line-in, Line-out) |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P |
| Network Connector | RJ-45 |
| Digital Input/Output | 1/1 |
| Local Storage | MicroSDHC/MicroSDXC memory card slot (card not included) |
| Power Source | DC 12V; PoE Class 3 |
| Environmental Casing | Weatherproof (IP67); Vandal proof metal casing (IK10) |
| Bundled Accessories | Bracket |
| Mount Type | Wall, Ceiling, Corner, Pole |
| Software Based Analytics | Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, |
| (require PC based Smart Search Tool, IVS Server or ALPR Server) | Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, |
| Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection | |
| Client PC Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime |
| ONVIF Compliant | Yes |
| Heater | Yes |
| Fan | No |
| Starting Temperature | -40°C ~ 50°C |
| (-40°F ~ 122°F) within 30 minutes | |
| Operating Temperature | -40°C ~ 50°C |
| (-40°F ~ 122°F) | |
| Approvals | CE, FCC, IP67, NEMA 4X, IK10 (metal casing) |
| Warranty | 3 Years |
Teknik Kısa
Çözünürlük : 3MP
Ses : Var
Irled : Var
Depolama : Var
