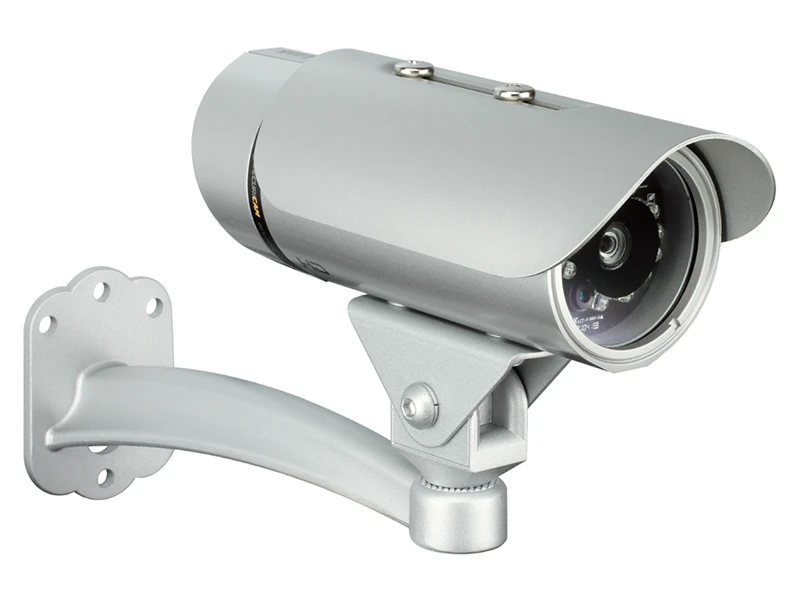

D-Link DCS 7110 A3A IP HD Bullet Kamera
Özellikler
Superior Performance
- 1/2.7” 2 megapixel CMOS sensor
- Real-time H.264/ MPEG-4/ MJPEG
- Max. resolution of 1920x1080 at 15 fps
Crystal Clear Feed
- Four (4) simultaneous streams
- Built-in 4 mm, F1.5 fixed lens
- 15M IR illumination distance
- IR-Cut Removable filter for day/night vision
Robust Security
- Tamper detection
- Motion detection
- Privacy mask
- IPv6, 802.1x, QoS, CoS
- HTTPS secured streaming
Full Compatibility
- Samba client
- IP66 weatherproof
- ONVIF compliant
- 12V DC, 24V AC and PoE
- DI/DO socket
Teknik Özellikler
| Hardware Profile |
| 1/2.7” 2 Megapixel progressive CMOS sensor |
| 15 metre IR illumination distance |
| Built-in Infrared-Cut Removable (ICR) Filter module |
| 4 mm fixed lens , F1.5 |
| Shutter speed: 1/5 - 1/32,000 seconds |
| Angle of view: |
| 77.4° (H) |
| 45.1° (V) |
| 88° (D) |
| Minimum object distance: 0.4 M |
| Image Features |
| Configurable image size, quality, frame rate, and bit rate |
| Time stamp and text overlays |
| 3 configurable motion detection windows |
| Min Illumination: |
| 0.12 Lux (day mode) |
| Lux (night mode) with IR LED |
| 5 configurable privacy masks |
| Flip & mirror |
| Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness |
| Functionality |
| Video Compression |
| H.264/MPEG4/MJPEG format compression simultaneously |
| JPEG for still image |
| H.264/MPEG-4 multicast streaming |
| Video Resolution |
| 1920 x 1080 @ 15 fps |
| 640x480 @ 30 fps |
| 320x240 @ 30 fps |
| 1280x800 @ 30 fps |
| 1280x720 @ 30 fps |
| Network Protocols |
| IPv4 |
| IPv6 |
| TCP/IP |
| UDP |
| ICMP |
| DHCP Client |
| NTP Client (D-Link) |
| DNS Client |
| DDNS Client (D-Link) |
| SMTP Client |
| FTP Client |
| HTTP / HTTPS |
| Samba Client |
| PPPoE |
| UPnP Port Forwarding |
| RTP/RTSP/RTCP |
| IP filtering |
| LLTD |
| CoS/QoS |
| SNMP |
| IGMP |
| 802.1x |
| ONVIF Compliant |
| Security |
| Administrator and user group protection |
| Password authentication |
| HTTP and RTSP digest encryption |
| HTTPS streaming |
| System Requirements |
| Microsoft Windows 2000, XP, Vista, 7 |
| Internet Explorer 7 or higher |
| D-ViewCam™ System Requirements |
| Operating System: Microsoft Windows ® 7/Vista/XP |
| Web Browser: Internet Explorer 7 or higher |
| Protocol: Standard TCP/IP |
| Event Management |
| Motion detection |
| Event notification and upload snapshots/video clips via HTTP, SMTP or FTP |
| Supports multiple HTTP, SMTP and FTP servers |
| Multiple event notification |
| Multiple recording methods for easy backup |
| Surveillance Software Functions |
| Remote management/control of up to 32 cameras |
| Viewing of up to 32 cameras on one screen |
| Supports all management functions provided in web interface |
| Scheduled motion triggered and manual recording options |
| External Device Interface |
| DI and DO for external sensor and alarm |
Fiziksel Özellikler
| Dimensions |
| 68 x 42 x 51 mm (2.68 x 1.65 x 2 inches) |
| Weight |
| 808 grams (1.78 lbs) |
| Power |
| Input: 12 V DC 1.25 A, 24 V AC, 50/60 Hz, 802.3af PoE |
| Max. Power Consumption |
| 6.3W |
| Temperature |
| Operating temperature-20 to 50 ˚C (-4 to 122 ˚F) |
| Storage:-20 to 70 ˚C (-4 to 158 ˚F) |
| Humidity |
| Operating: 0% to 90% non-condensing |
| Certifications |
| CE (Class A) |
| CE LVD (EN60965-1) |
| FCC (Class A) |
| ICES-003 |
| C-Tick |
Teknik Kısa
Çözünürlük : 1MP (720P)
Irled : Var
