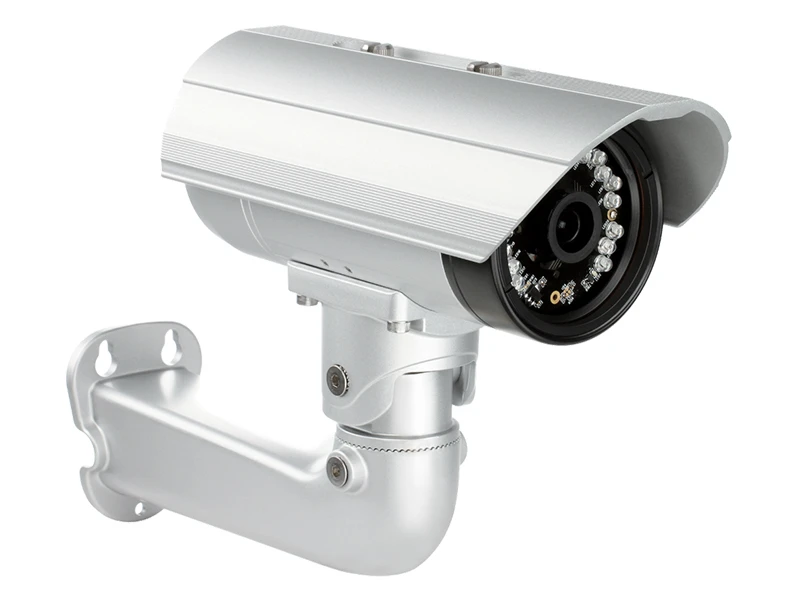

D-Link DCS 7513 A1A IP HD Bullet Kamera
Teknik Özellikler
| Camera Hardware Profile |
| 1/2.8” 2 Megapixel progressive CMOS sensor |
| 30 meter IR illumination distance |
| Minimum illumination: 0 lux with IR LEDs on |
| Built-in Infrared-Cut Removable (ICR) Filter module |
| 10x digital zoom |
| 3 to 9 mm motorized varifocal lens |
| Aperture: F1.2 |
| Angle of view (16:9) |
| (H) 121.2° to 38.1° |
| (V) 62.1° to 21.3° |
| (D) 148.4° to 43.8° |
| Camera Housing |
| IP-66 compliant weatherproof housing |
| Cable management bracket |
| Image Features |
| Configurable image size, quality, frame rate, and bit rate |
| Time stamp and text overlays |
| Configurable motion detection windows |
| Configurable privacy mask zones |
| Configurable shutter speed, brightness, saturation, contrast, sharpness, zoom, focus, and aperture |
| Video Compression |
| Simultaneous H.264/MPEG-4/MJPEG format compression |
| H.264/MPEG-4 multicast streaming |
| JPEG for still images |
| Video Resolution |
| 16:9 at 1920 x 1080,1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps |
| 4:3 at 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps |
| Audio Support |
| G.726 |
| G.711 |
| External Device Interface |
| 10/100 BASE-TX Ethernet port with PoE |
| 1 DI/1 DO |
| 12 V DC, 100 mA output |
| SD/SDHC card slot |
| Audio input/output |
| DI/DO connector 12 V DC output |
| Network Protocols |
| IPv6 |
| IPv4 |
| TCP/IP |
| UDP |
| ICMP |
| DHCP client |
| NTP client (D-Link) |
| DNS client |
| DDNS client (D-Link) |
| SMTP client |
| FTP client |
| HTTP/HTTPS |
| Samba client |
| PPPoE |
| UPnP port forwarding |
| RTP/RTSP/RTCP |
| IP filtering |
| QoS |
| CoS |
| Multicast |
| IGMP |
| ONVIF compliant |
| Security |
| Administrator and user group protection |
| Password authentication |
| HTTP and RTSP digest encryption |
| System Requirements for Web Interface |
| Browser: Internet Explorer, Firefox, Chrome, or Safari |
| Event Management |
| Motion detection |
| Event notification and uploading of snapshots/video clips via e-mail or FTP |
| Supports multiple SMTP and FTP servers |
| Multiple event notifications |
| Multiple recording methods for easy backup |
| Remote Management |
| Take snapshots/video clips and save to local hard drive or NAS via web browser |
| Configuration interface accessible via web browser |
| Operating Systems |
| Windows 7/Vista/XP/2000 |
| D-ViewCam™ System Requirements |
| Operating System: Microsoft Windows 7/Vista/XP |
| Web Browser: Internet Explorer 7 or higher |
| Protocol: Standard TCP/IP |
| D-ViewCam™ Software Functions |
| Remote management |
| Control and manage up to 32 cameras |
| View up to 32 cameras on one screen |
| Management functions provided in web interface |
| Scheduled, motion detection, and manual recording triggers |
Fiziksel Özellikler
| Weight |
| 2.05 kg with bracket and sunshield |
| External Power Adapter |
| Input: 100 to 240 V AC, 50/60 Hz |
| Output: 12 V 1.25 A |
| Power Consumption |
| 11.02 watts ± 5 % |
| Temperature |
| Operating: -40° to 50°C |
| Storage: -20° to 70°C |
| Humidity |
| Operating: 20% to 80% non-condensing |
| Storage: 5% to 95% non-condensing |
| Certifications |
| CE |
| CE LVD |
| FCC |
| C-Tick |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
Ses : Var
Irled : Var
